CGM MOUNTS

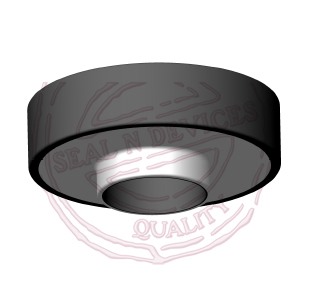

Universal - CGM Mount – Two-Piece Anti Vibration Mount
The CGM Anti Vibration Mount is a compact, two-piece vibration isolator designed with an bonded metals for added stability, making it an ideal solution for applications requiring superior vibration isolation, shock absorption. Its low profile and rugged design make it particularly effective in dynamic applications.

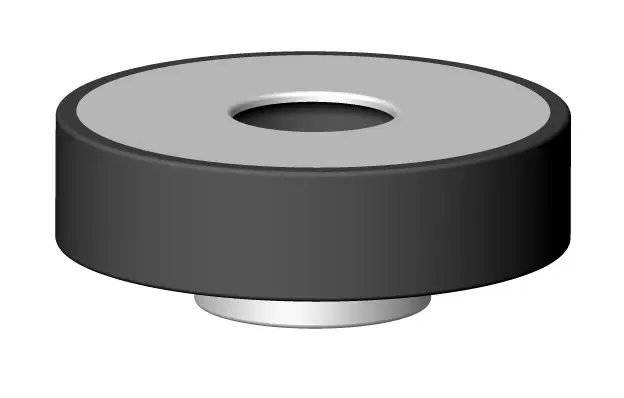

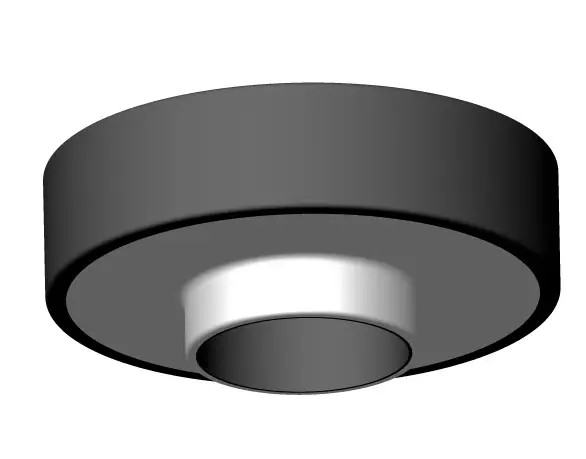

Compact Vibration Isolator for general applications
By using two of the CGM Universal Vibration Mount on either side of a central metal plate, creating a secure yet flexible system that can handle multi-directional forces (effectively a failsafe mounting). This design ensures consistent performance in both compression and shear modes, while the metals offer added protection and stability.
The CGM rubber vibration mounts are ideal for use where horizontal and vertical vibration needs to be controlled simultaneously in compact spaces or mobile equipment.
Data Table

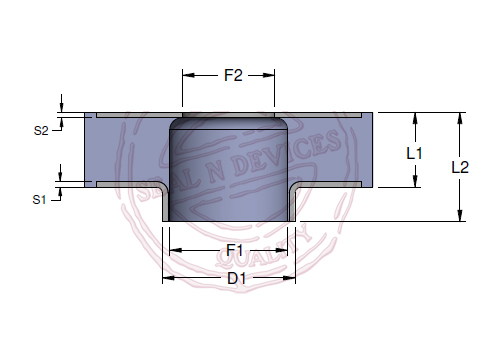

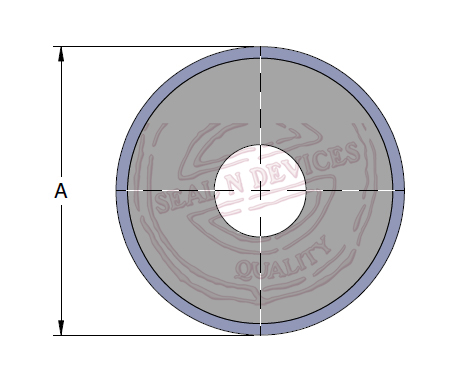

| Item Code | Hardness | A | D1 | F1 | F2 | L1 | L2 | S1 | S2 | Max Load (kg) | Deflection (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CGM3611W | 45° | 36 | 20 | 16.5 | 16.5 | 8 | 10.5 | 1.5 | 1.5 | 81.0 | 0.9 |
| CGM3611M | 60° | 36 | 20 | 16.5 | 16.5 | 8 | 10.5 | 1.5 | 1.5 | 135.0 | 0.9 |
| CGM5023W | 45° | 50 | 23 | 20 | 16.5 | 13 | 22.5 | 1.5 | 1.5 | 120.0 | 1.5 |
| CGM5023M | 60° | 50 | 23 | 20 | 16.5 | 13 | 22.5 | 1.5 | 1.5 | 210.0 | 1.5 |
| CGM6023W | 45° | 60 | 27 | 24 | 20.5 | 13 | 23.5 | 1.5 | 1.5 | 209.0 | 1.9 |
| CGM6023M | 60° | 60 | 27 | 24 | 20.5 | 13 | 23.5 | 1.5 | 1.5 | 399.0 | 1.9 |
| CGM7023W | 45° | 70 | 44 | 41 | 39 | 14.5 | 22.5 | 1.5 | 1.5 | 220 | 2 |
| CGM7023M | 60° | 70 | 44 | 41 | 39 | 14.5 | 22.5 | 1.5 | 1.5 | 420 | 2 |
Key Features
- Compact, low-profile design
- Two-piece anti vibration mount with bonded metals for extra protection and support
- Anti Vibration mount that be handle both compression and shear forces
- Easy to install
- Reliable performance in harsh or mobile environments
- Ideal as a universal vibration damper and anti vibration mount for a wide range of applications
Typical Applications of CGM Anti Vibration Mounts
CGM vibration isolators are designed for general-purpose vibration control and are widely used in mechanical equipment, mobile systems, and compact machine bases.
- Portable generators and small engines
- HVAC equipment, pumps and chillers
- Mobile application or vehicle mounted equipment
- Light compressors and air handling units
- Transportable enclosures or cabinets
Benefits of CGM Anti Vibration Mounts
- Reduces vibration and structural fatigue
- Protects equipment and improves performance
- Minimizes noise and vibration
- Acts as both vibration isolator and vibration damper
- Suitable for dynamic and static installations
Why Choose Our CGM Universal Anti Vibration Mounts?
Designed to meet the rigorous needs of industrial and mobile equipment, our CGM Vibration Isolators deliver a reliable balance of strength, performance and ease of installation. Their universal anti vibration design ensures they can be installed in a multitude of applications where vibration control is required with.
Whether you require a compact vibration isolator or a rugged vibration damper with built-in support, CGM mounts provide high performance at a relatively low cost.
