RUBBER FOOT MOUNT
AND ADJUSTABLE FEET

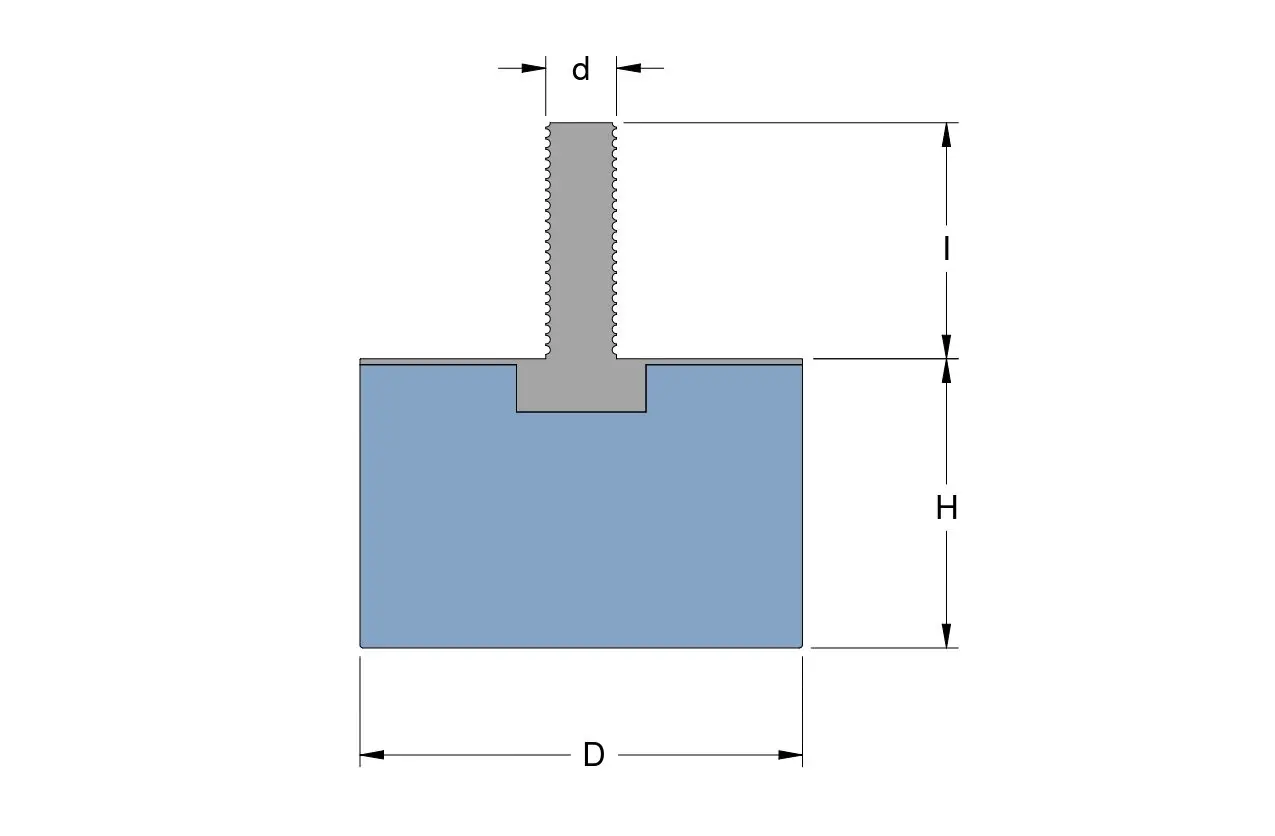

Foot Mount, Rubber Buffer, End Stop
| Part No | D (mm) | H (mm) | d | I (mm) | Shore | Load (kg) | Deflection (mm) |
|---|---|---|---|---|---|---|---|
| 158-4-10/FM | 15 | 8 | M4 | 10 | 60 | 15 | 1.6 |
| 2515-6-18/FM | 20 | 15 | M6 | 18 | 60 | 22 | 1.6 |
| 225-6-18/FM | 20 | 25 | M6 | 18 | 60 | 15 | 2.5 |
| 252-6-18/FM | 25 | 20 | M6 | 18 | 60 | 25 | 1.8 |
| 252-8-18/FM | 25 | 20 | M8 | 18 | 60 | 25 | 1.8 |
| 32-8-25/FM | 30 | 20 | M8 | 23 | 60 | 40 | 1.6 |
| 43-8-20/FM | 40 | 30 | M8 | 18 | 45 | 42 | 3 |
| 43-10-20/FM | 40 | 30 | M10 | 18 | 60 | 72 | 3 |
| 53-10-30/FM | 50 | 30 | M10 | 28 | 60 | 156 | 2.6 |
| 54-10-30/FM | 50 | 40 | M10 | 28 | 60 | 115 | 4 |
| 64-10-30/FM | 60 | 40 | M10 | 28 | 60 | 171 | 3 |
| 75-12-40/FM | 75 | 50 | M12 | 37 | 60 | 250 | 3.5 |
| 15-16-40/FM | 100 | 50 | M16 | 37 | 60 | 550 | 4.2 |
* Custom sizes made to order
* Tolerance on I = ±3mm
