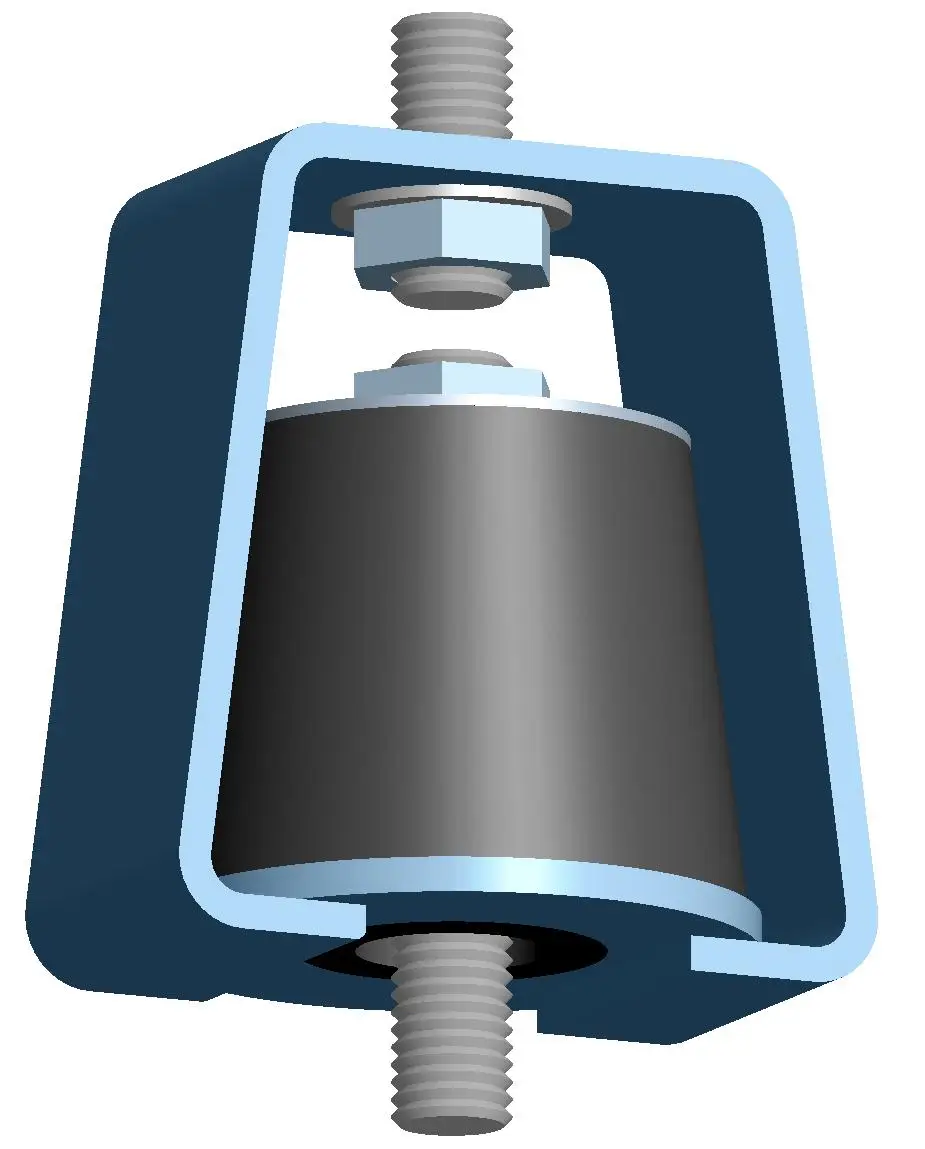

RH
These hanger mounts use Natural Rubber elements to reduce vibration for pipes or various equipment. The main function of these mounts, is to reduce noise. The RH range works efficiently between 5-10 mm deflection.

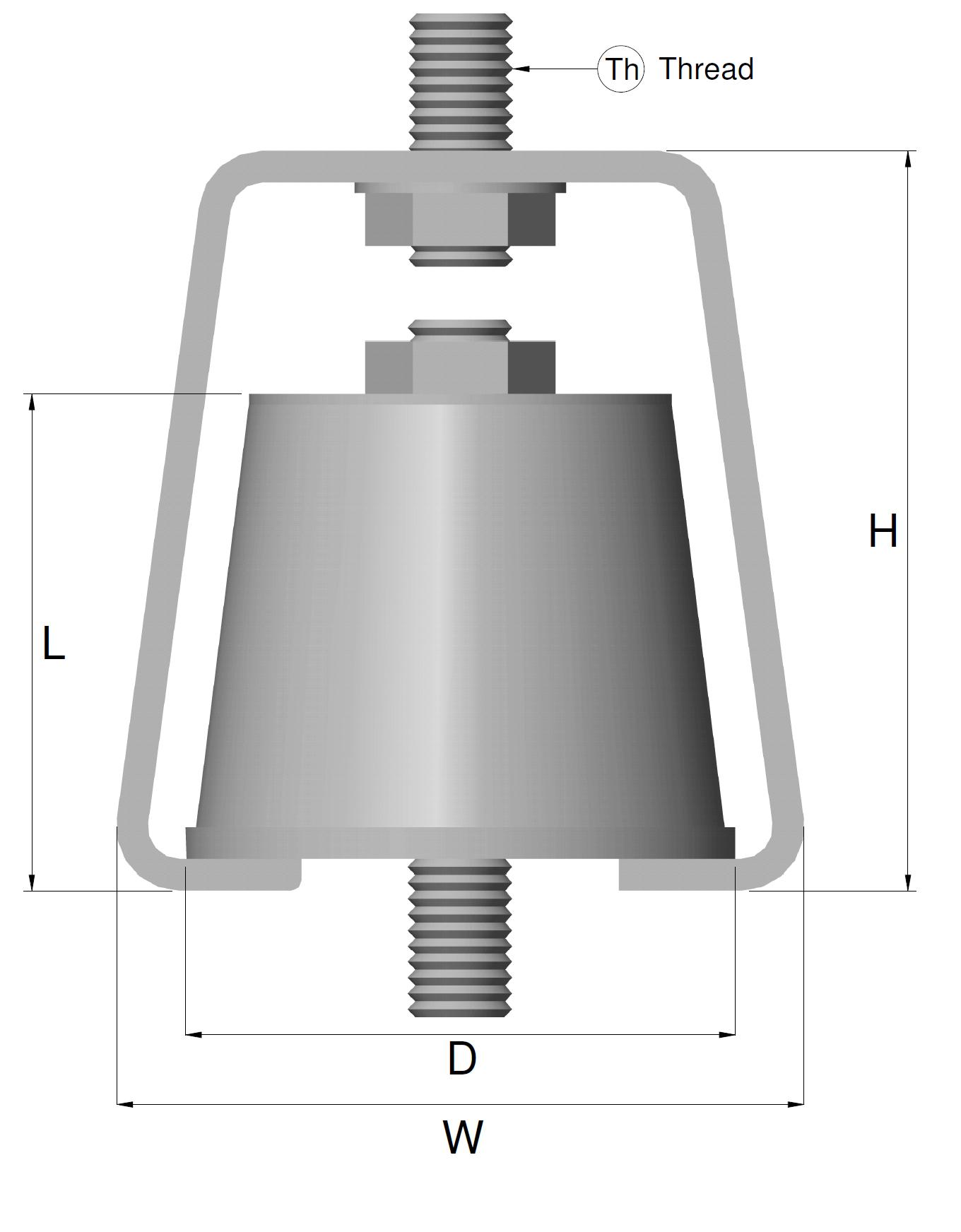

Dimensions (mm)
| Size | H | W | D | L | Th |
|---|---|---|---|---|---|
| RH1 | 72 | 56 | 50 | 55 | M10 |
| RH2 | 115 | 108 | 50 | 75 | M12 |
| RH3 | 115 | 108 | 50 | 75 | M12 |
| RH4 | 159 | 121 | 65 | 90 | M20 |
Load Ratings (kg)
| Size | Hardness | Load Range (kg) | Deflection (mm) |
|---|---|---|---|
| RH1 | Green | 20-35 | 6 |
| Red | 35-70 | ||
| RH3 | Red | 90-180 | 8 |
| Yellow | 140-270 | ||
| RH2 | White | 200-375 | 10 |
| Yellow | 350-700 | ||
| RH4 | Yellow | 600-1150 | 10 |
