AD MOUNTS
HIGH DEFLECTION RUBBER MOUNTING
Type AD
Type M Rubber Mounts are specifically designed to give large deflection at low loads. Its unique design makes it a high performance anti-vibration rubber mounting with load ratings from 20 kg up to maximum 3100 kg. Ideal for applications with low frequency vibration in the 3 directions and could also be suitable for shock attenuation due to the designed ability to offer large deflections.
Provides effective vibration isolation of equipment and is easy to install.
AD Series Mountings

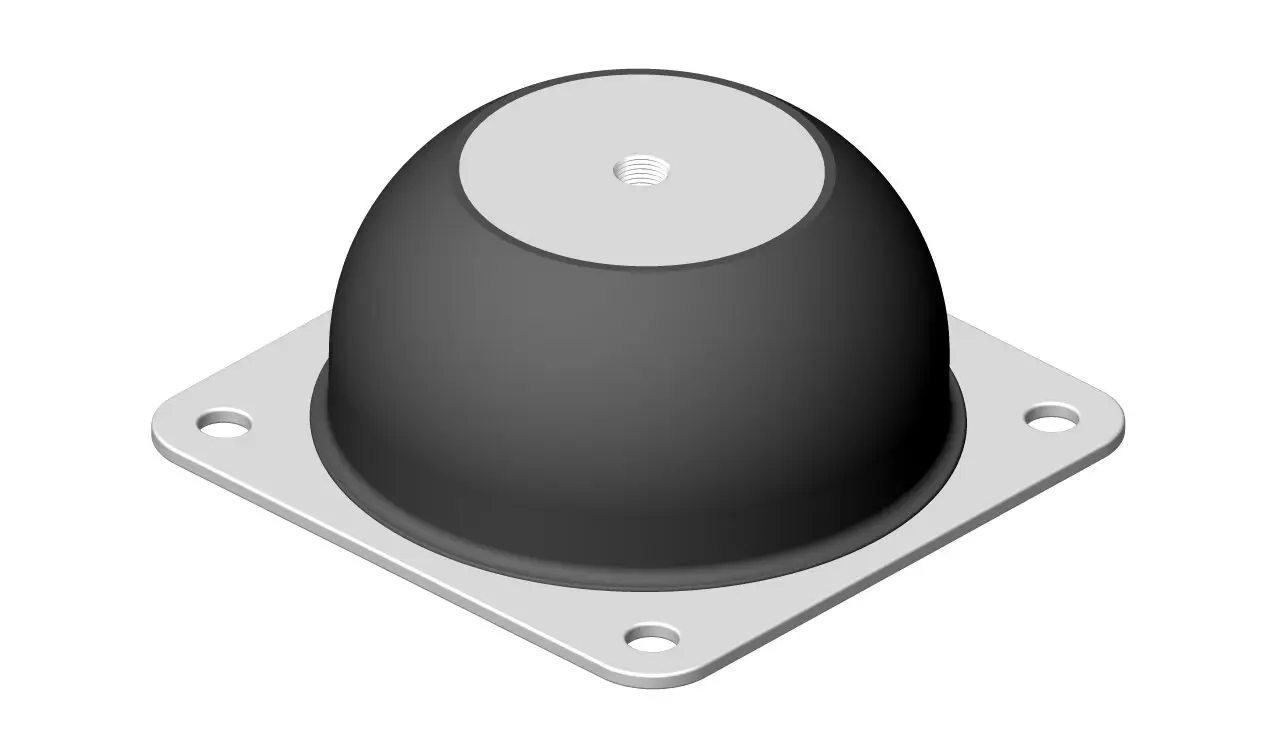

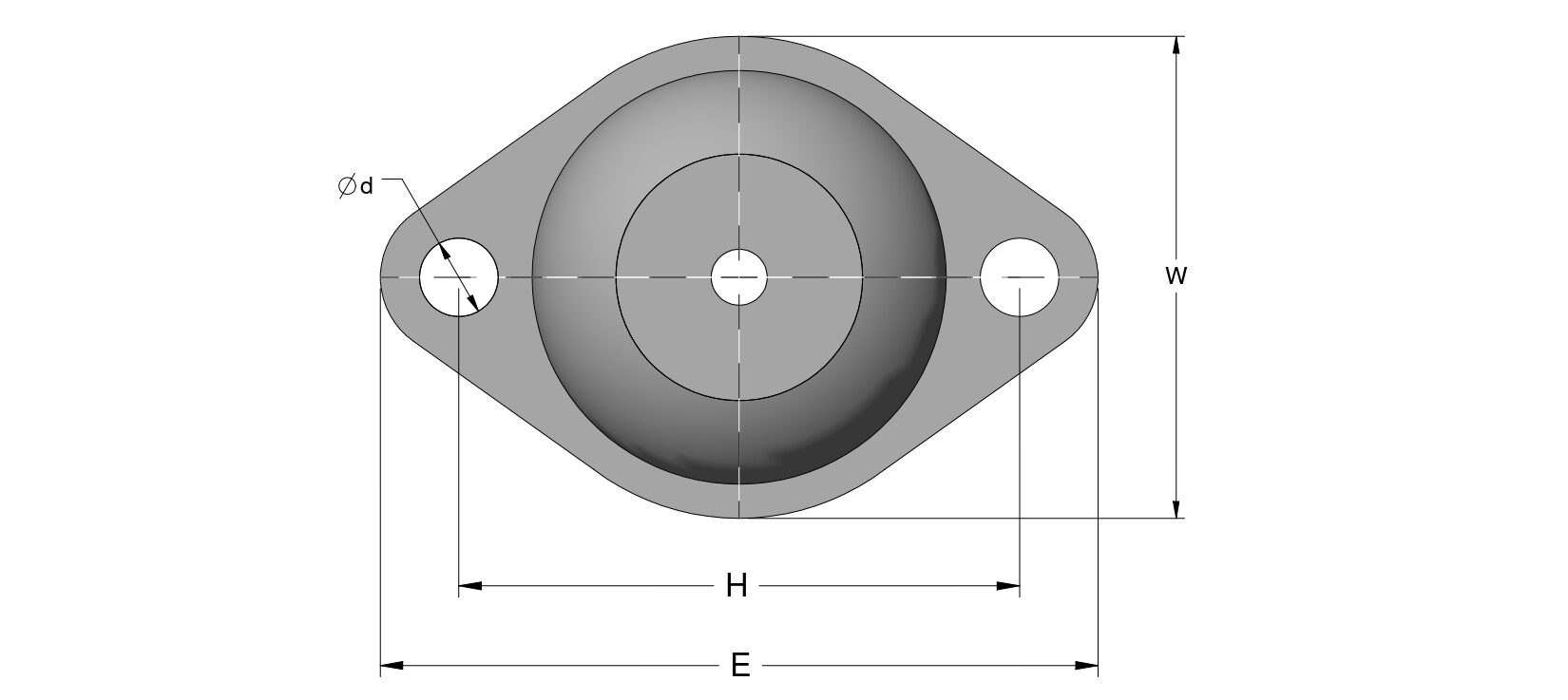

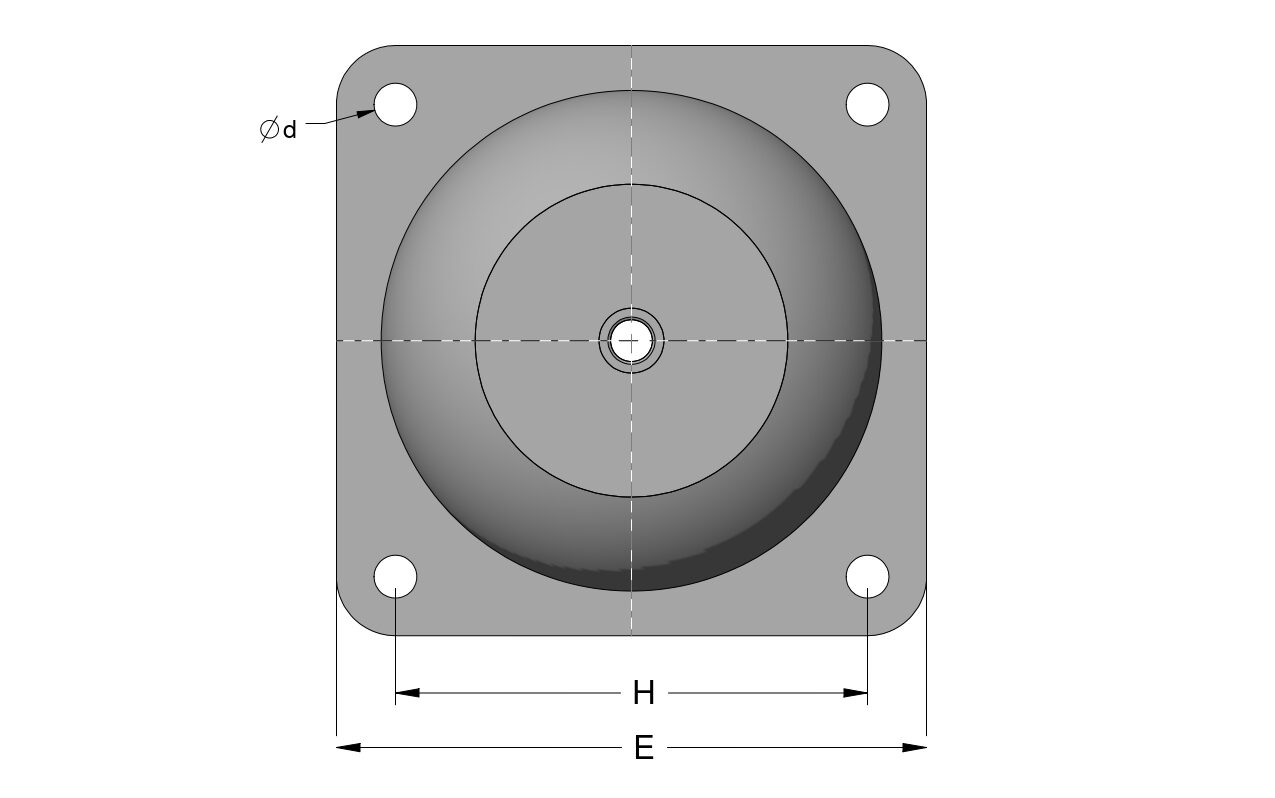

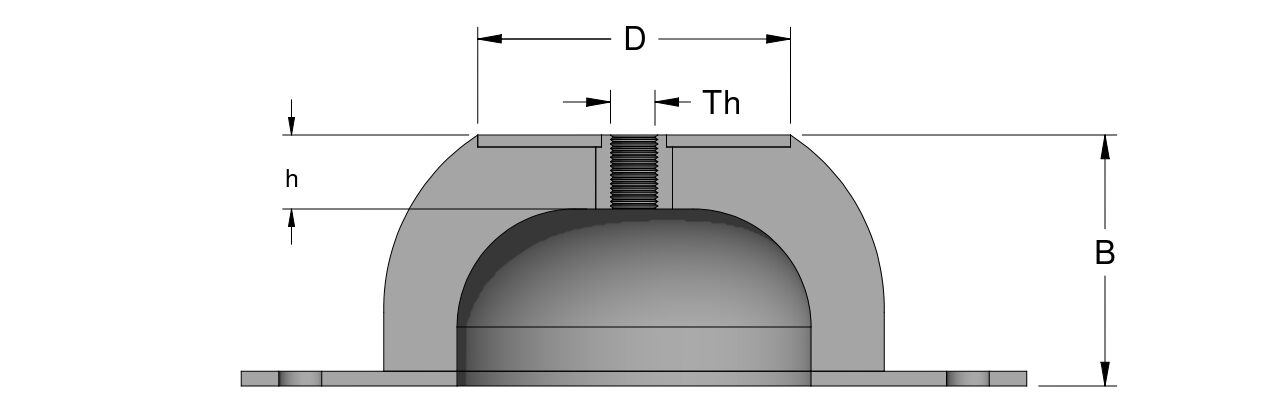

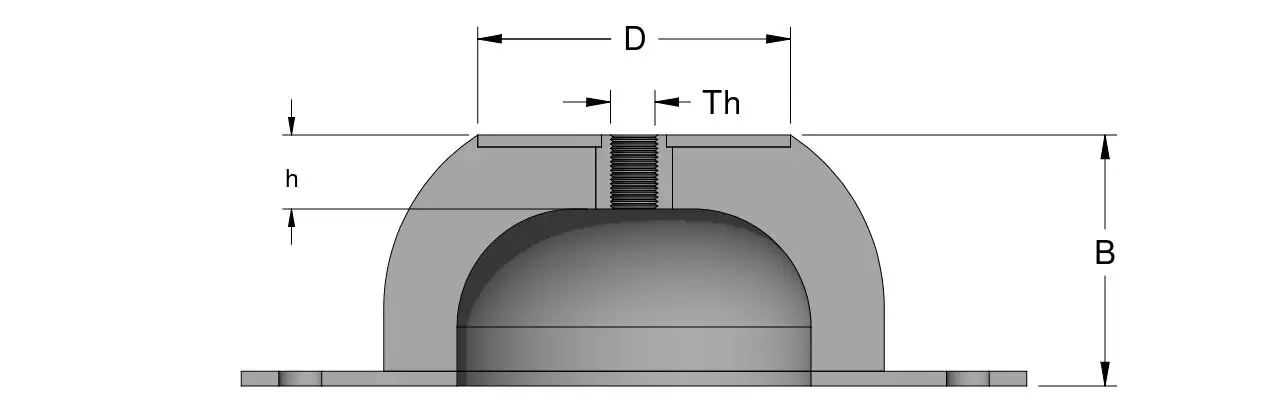

| Item No | D | B | E | H | W | Th | h | d | 45 Shore | 60 Shore |
|---|---|---|---|---|---|---|---|---|---|---|
| AD 7 | 18 | 20 | 64 | 50 | 43 | M6 | 7 | 7 | 3.5 | 9 |
| AD 25 | 33 | 24 | 85 | 66 | 56 | M8 | 9 | 8 | 20 | 50 |
| AD 50 | 45 | 35 | 114 | 92 | 76 | M10 | 10 | 10 | 40 | 80 |
| AD 100 | 53 | 40 | 136 | 110 | 96 | M10 | 11 | 11.5 | 70 | 150 |
| AD 200 | 60 | 45 | 151 | 124 | 101 | M10 | 12.5 | 11.5 | 130 | 220 |
| AD 400 | 78 | 63 | 150 | 120 | - | M12 | 17 | 14.5 | 280 | 500 |
| AD 600 | 100 | 85 | 200 | 160 | - | M16 | 25 | 14.5 | 380 | 750 |
| AD 1500 | 186 | 160 | 310 | 250 | - | M24 | 44 | 18 | 1400 | 2500 |
