SMR SPRING MOUNTS

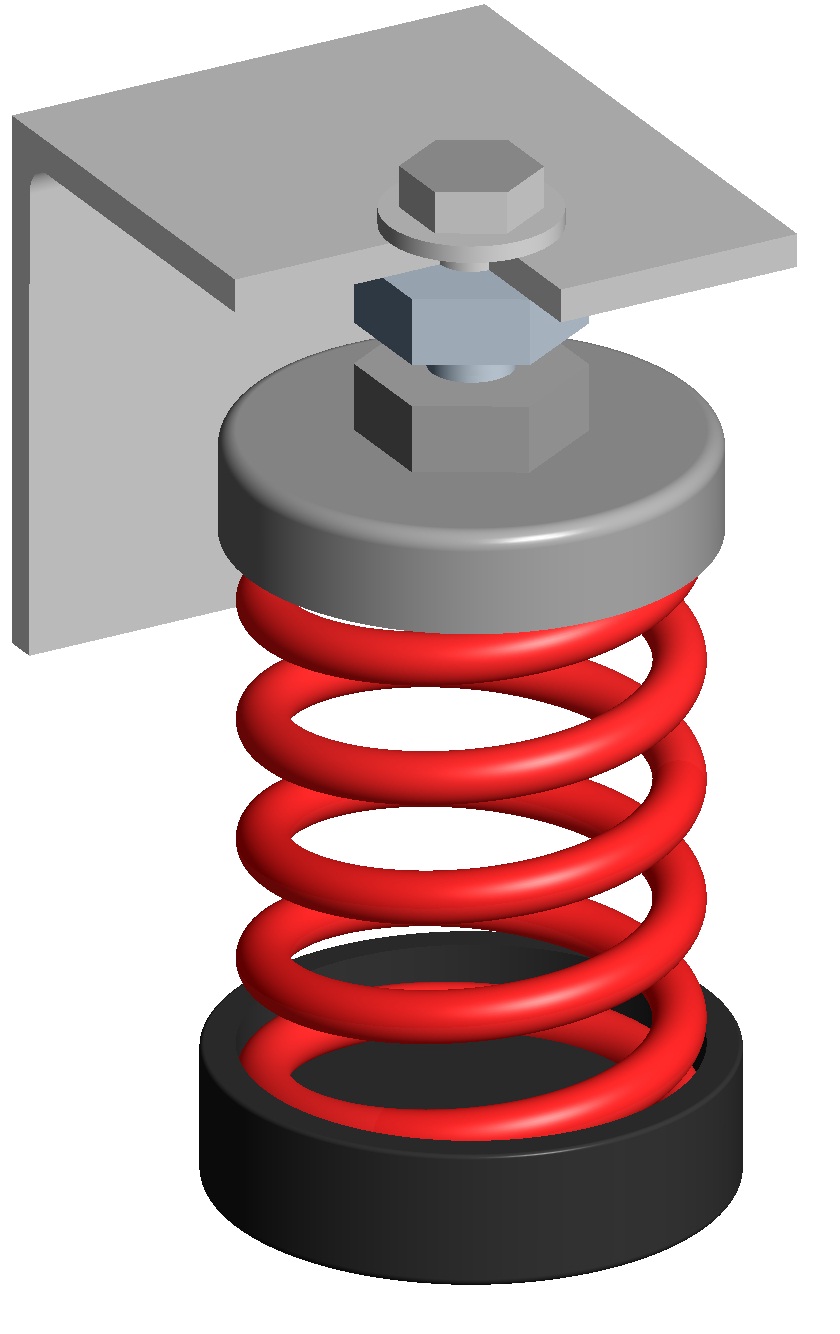

Spring Mount SMR
Data Table

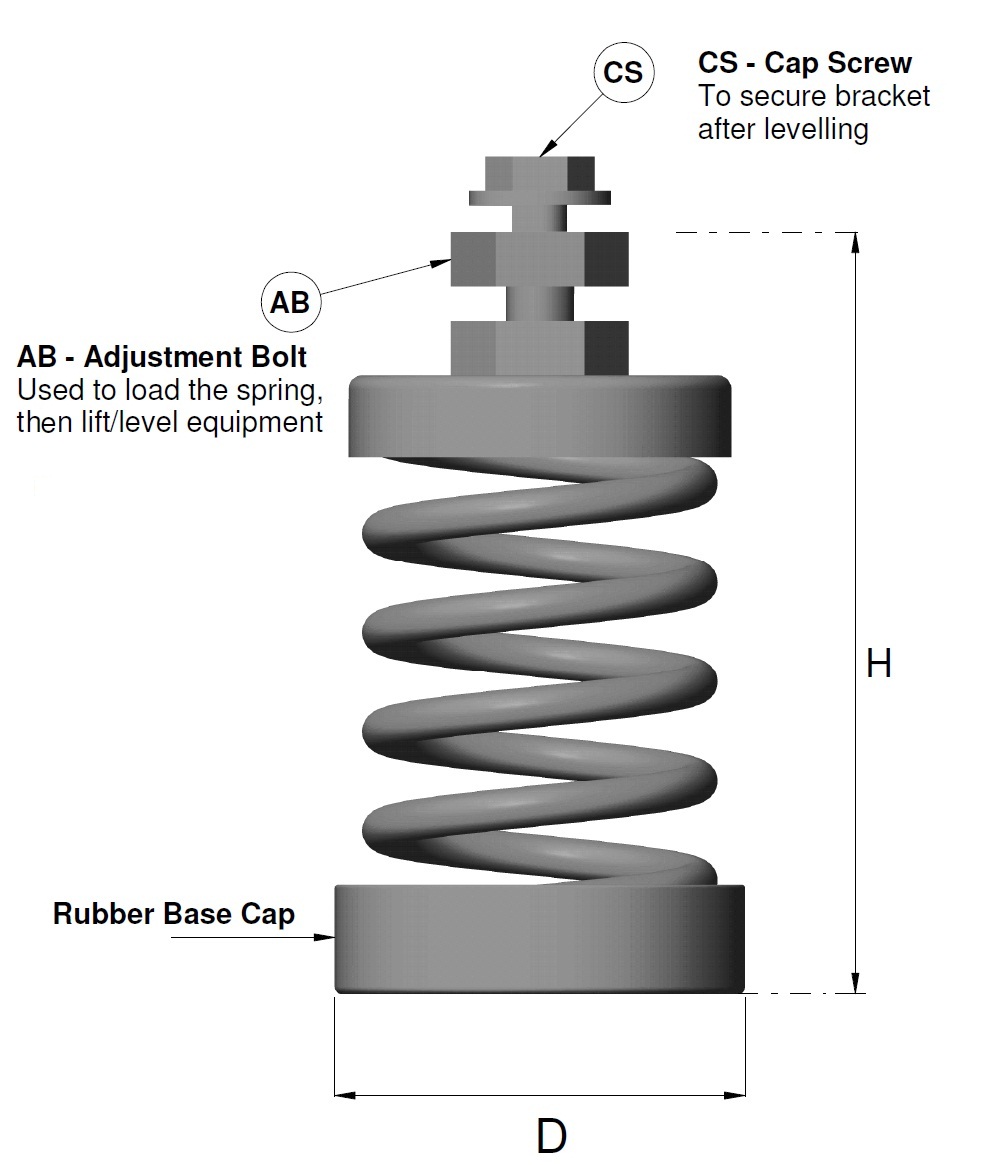

| Size | Rated Load (kg) | Rated Defl. (mm) | Spring Rate (kg/mm) | Spring Colour | Height (H) | Bolt (AB) | Screw (CS) | Cap Diameter (D) |
|---|---|---|---|---|---|---|---|---|
| SMR1 | 45 | 20 | 40 | 0.5 Blue | ||||
| 75 | 34 | 38 | 0.9 Orange | |||||
| 125 | 56 | 33 | 1.7 Red | 107 | M16x65 | M10x25 | 54 | |
| 200 | 90 | 29 | 3.1 Black | |||||
| 310 | 150 | 25 | 6.1 Yellow | |||||
| SMR2 | 60 | 27 | 54 | 0.5 Grey | ||||
| 140 | 64 | 49 | 1.3 Orange | |||||
| 280 | 128 | 40 | 3.2 Green | 150 | M20x90 | M10x30 | 70 | |
| 450 | 207 | 33 | 6.3 Red | |||||
| 750 | 340 | 30 | 11.3 White | |||||
| 1000 | 450 | 25 | 18 Blue | |||||
| SMR3 | 110 | 50 | 52 | 0.95 Orange | ||||
| 225 | 100 | 45 | 2.2 Blue | |||||
| 435 | 200 | 39 | 5.1 Grey | |||||
| 735 | 320 | 35 | 9.2 White | 150 | M20x90 | M10x30 | 82 | |
| 1000 | 445 | 26 | 17.2 Black | |||||
| 1350 | 615 | 25 | 24.6 Yellow | |||||
| 1675 | 765 | 25 | 30.6 Yellow* | |||||
| 2100 | 950 | 25 | 38 Yellow** | |||||
* Grey spring
** Red Inner Spring
