SM MOUNTS

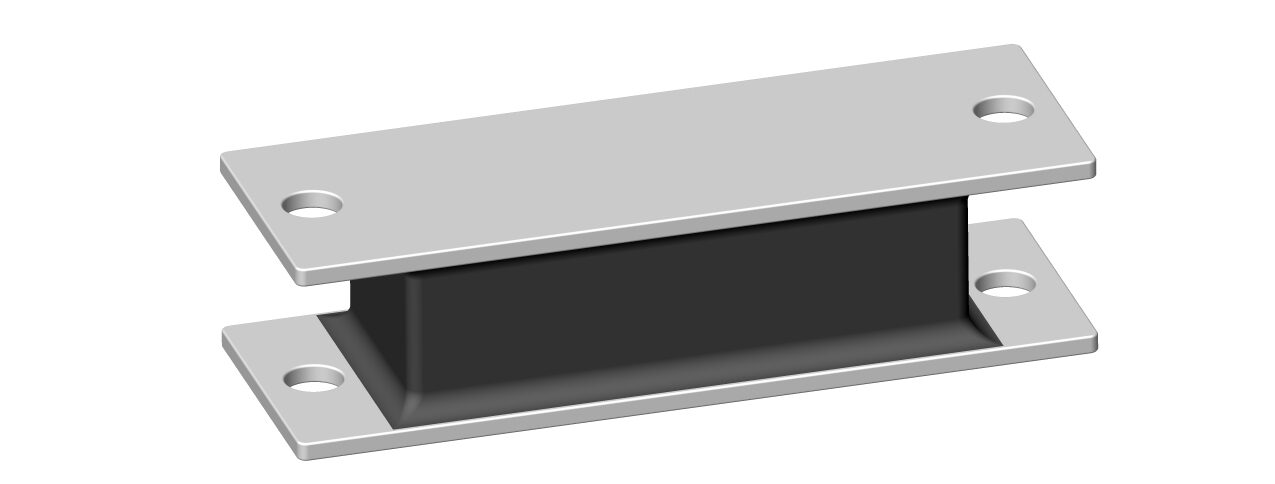

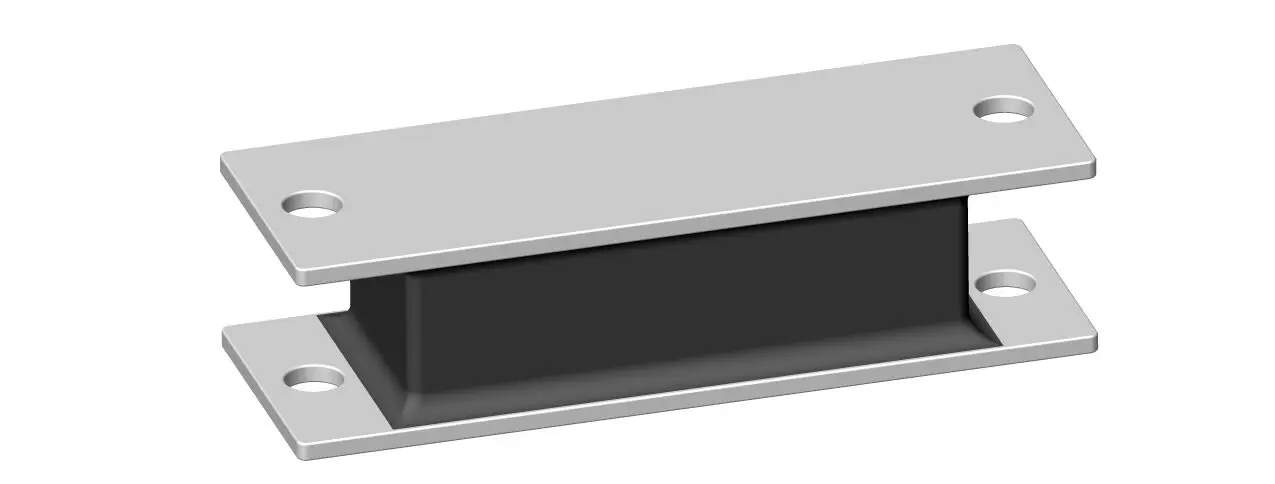

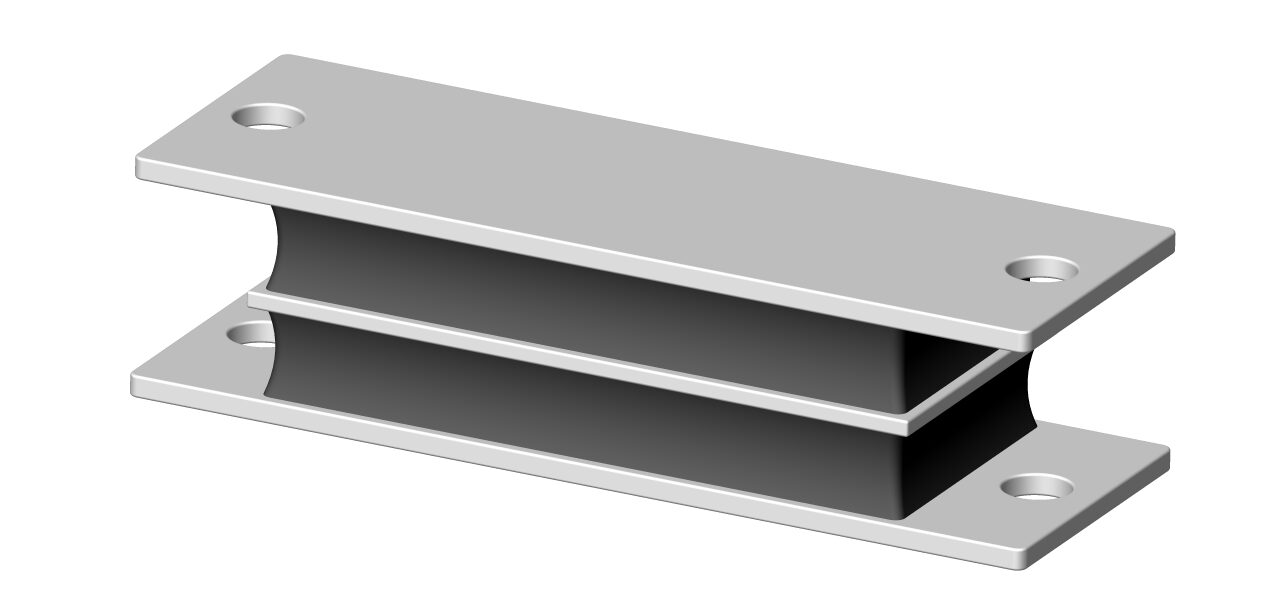

SANDWICH MOUNTS – Type SM
Sandwich Mounts provide a high load capacity at a low cost. They can be used in compression or at an angle to increase deflection.
Sandwich Mounts are universally used on many applications as they are simple to install.

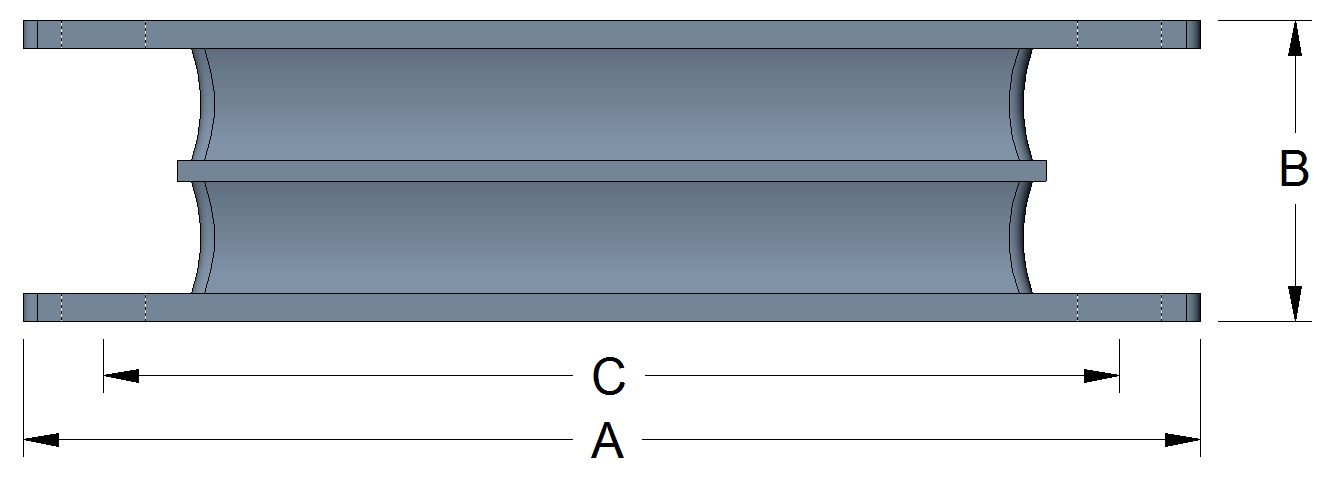

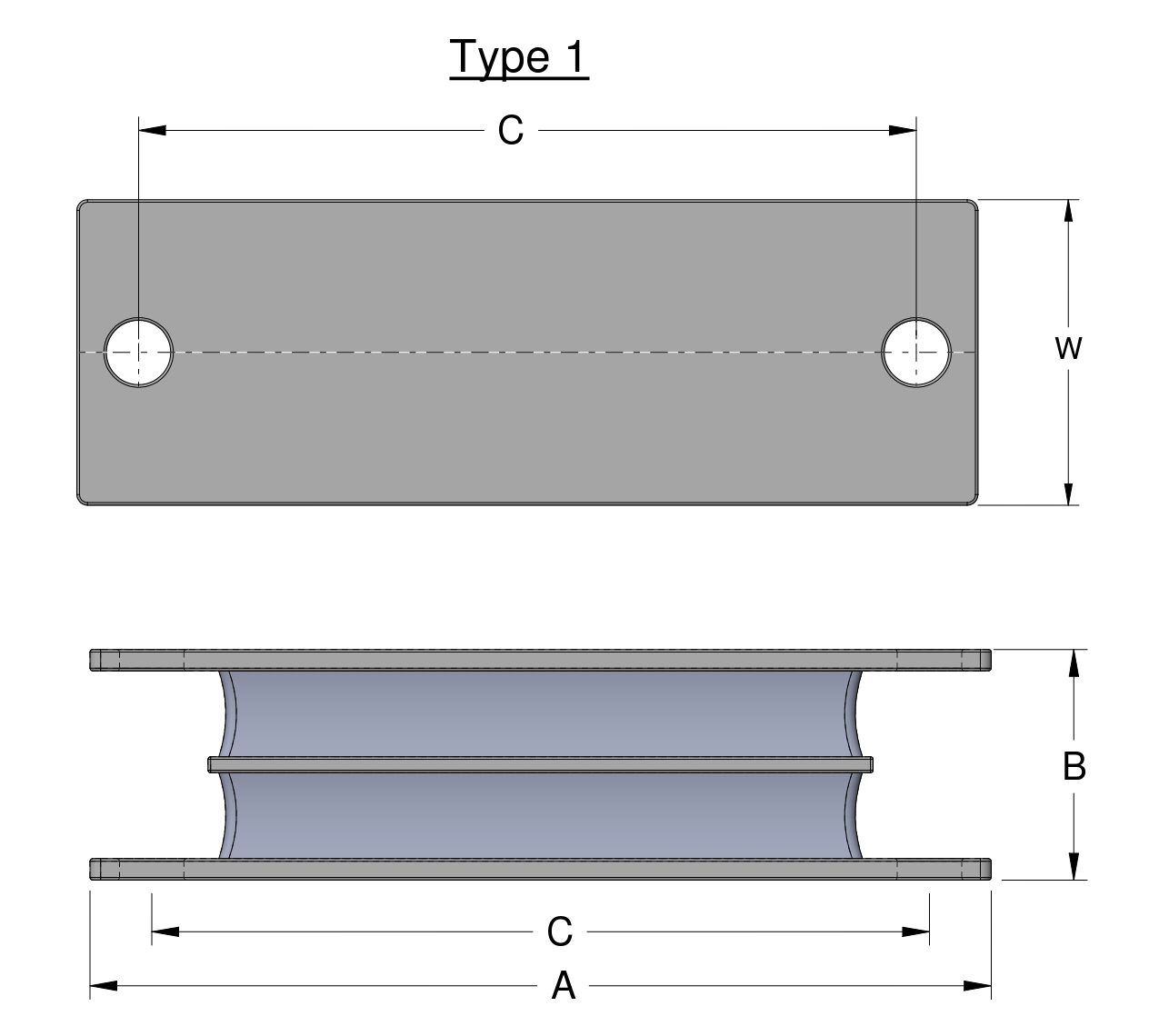

Type 1 Table
| Part No | TYPE | A | B | C | W | PLATES | 45° (shore) | 60° (shore) | 70° (shore) |
|---|---|---|---|---|---|---|---|---|---|
| SM001 | 1 | 107 | 50 | 85 | 57 | 2 | 150kg | 260kg | 350kg |
| SM001-1 | 1 | 107 | 49 | 85 | 57 | 3 | 300kg | 520kg | 700kg |
| SM007 | 1 | 125 | 44 | 107 | 53 | 3 | 350kg | 450kg | 550kg |
| SM002 | 1 | 153 | 43 | 130 | 50 | 2 | 180kg | 300kg | 420kg |
| SM003 | 1 | 153 | 43 | 130 | 50 | 3 | 360kg | 600kg | 840kg |
| SM004 | 1 | 168 | 43 | 145 | 57 | 2 | 300kg | 500kg | 700kg |
| SM006 | 1 | 168 | 43 | 145 | 57 | 3 | 600kg | 1000kg | 1400kg |
Type 2 Table
| Part No | TYPE | A | B | C | D | E | W | Th | G | F | PLATES | 45° (shore) | 60° (shore) | 70° (shore) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM008 | 2 | 90 | 34 | 75 | 54 | 6.6 | 41 | M8 | 16.5 | 3 | 2 | 90kg | 180kg | 250kg |
