PD MOUNTS
Description

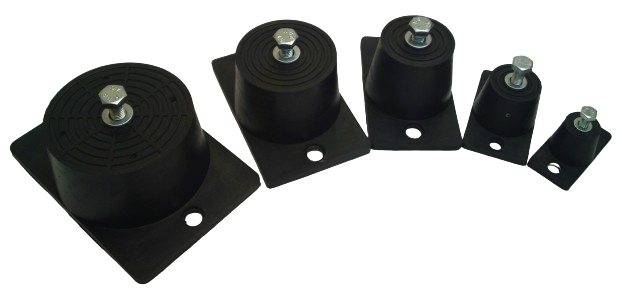

Our PD Mounts are high deflection mountings which are able to efficiently reduce noise and high frequency vibration from fans, pumps, aircon units and other general rotating machinery.
Characteristics
- All metals covered by rubber to prevent corrosion
- Top and Base rib design to improve grip
- Specifically manufactured for fans, pumps, air-conditioning units and other general rotating machinery
Features
- High Deflection
- Load ratings from 50 – 1500kg (colour coded)
- Non-Skid ribbed base
- Can be made in different compounds for special applications as these are made in house.
Load Ratings
| Size | Hardness | Load Range (kg) | Max Deflection (mm) |
|---|---|---|---|
| PD1 | 40 - Green | 20 - 35 | 5 |
| 50 - Red | 30 - 50 | ||
| PD2 | 40 - Green | 50 - 100 | 7 |
| 60 - White | 80 - 150 | ||
| PD3 | 40 - Green | 70 - 125 | 10 |
| 50 - Red | 110 - 225 | ||
| 70 - Yellow | 200 - 375 | ||
| PD4 | 50 - Red | 300 - 475 | 10 |
| 70 - Yellow | 400 - 750 | ||
| PD5 | 70 - Yellow | 750 - 1500 | 10 |

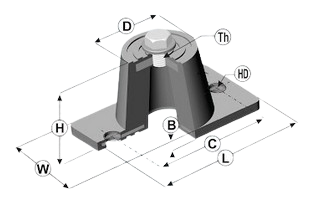

Dimensions (mm)
| Size | Length (L) | Width (W) | Height (H) | Top Dia (D) | Thread | Base Thickness (Th) | Hole Centres (HC) | Hole Dia (HD) |
|---|---|---|---|---|---|---|---|---|
| PD1 | 80 | 43 | 38 | 30 | M8 | 6 | 59 | 10.5 |
| PD2 | 98 | 58 | 48 | 45 | M10 | 6 | 76 | 10.5 |
| PD3 | 140 | 83 | 70 | 65 | M12 | 6 | 104 | 14 |
| PD4 | 158 | 100 | 70 | 88 | M12 | 7 | 128 | 14 |
| PD5 | 186 | 130 | 70 | 115 | M12 | 8 | 155 | 14 |
