O MOUNTS

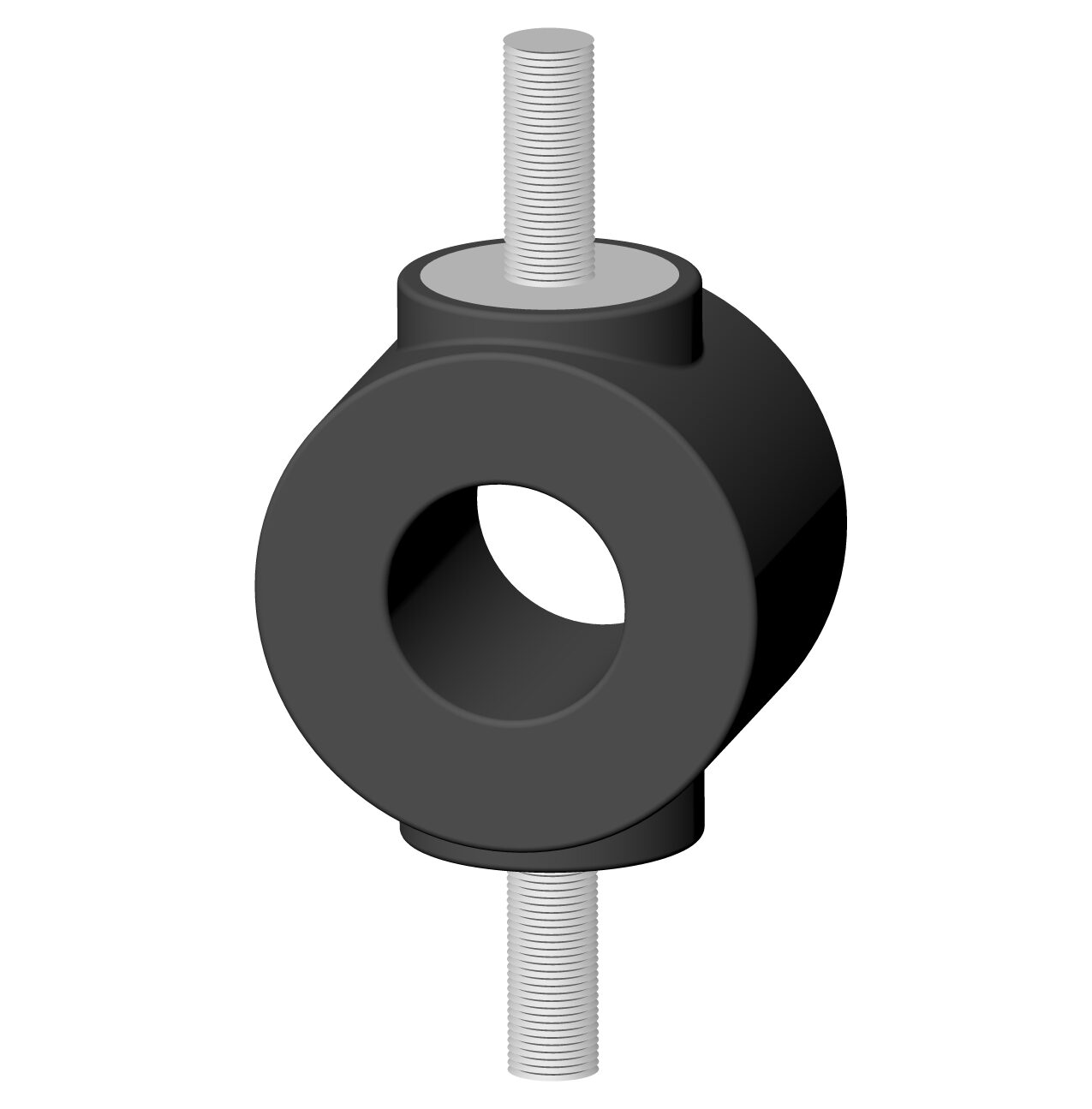

Low Frequency "O" Mounts

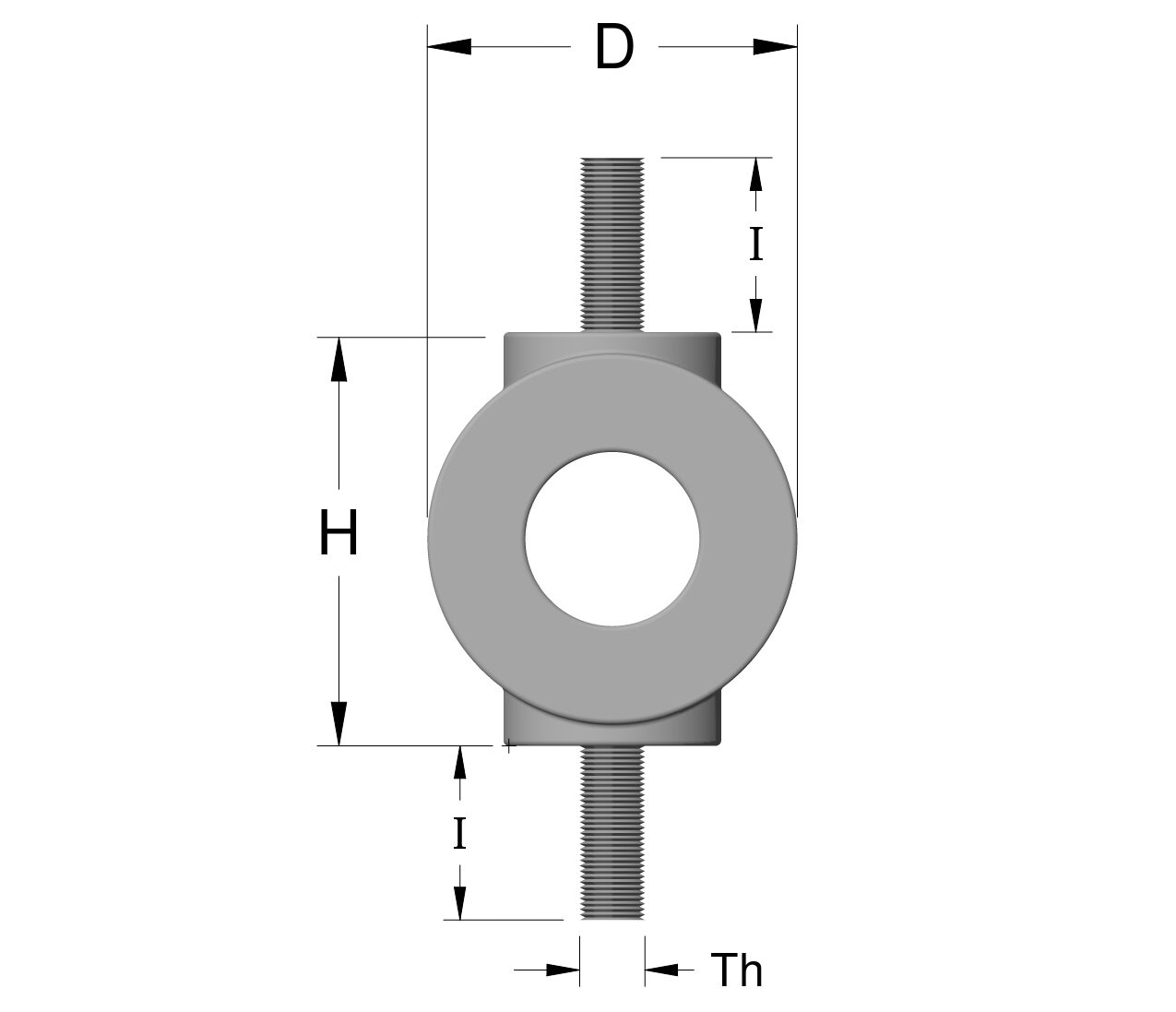

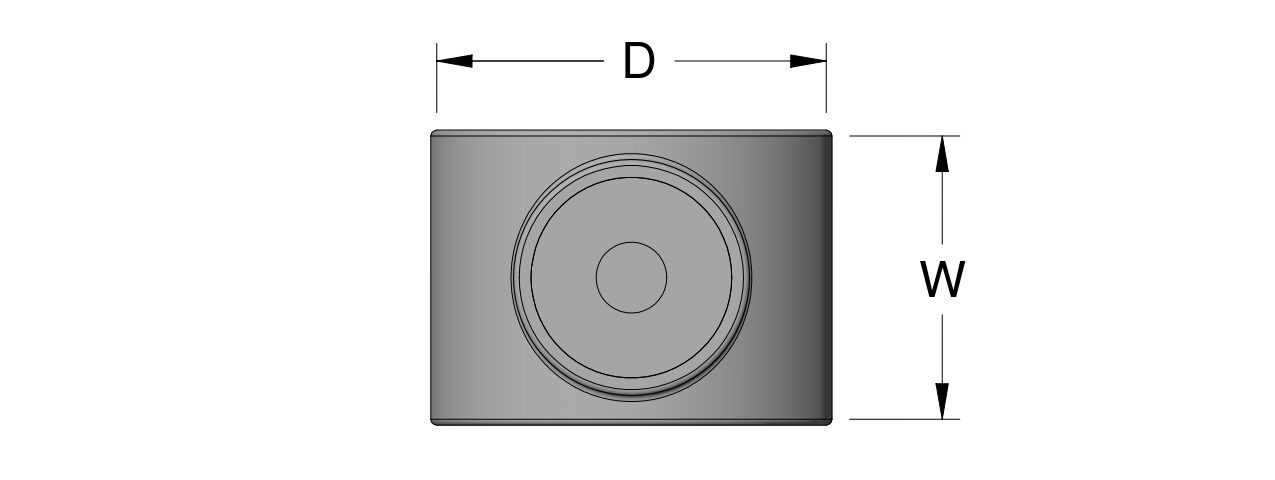

| PART no | D (mm) | H (mm) | W (mm) | Th | *I (mm) | Load (kg) | Deflection (mm) |
|---|---|---|---|---|---|---|---|
| LF001 | 10 | 12.5 | 9.4 | M4 | 10 | 1 | 1 |
| LF002 | 14 | 17 | 13 | M4 | 10 | 1.4 | 2.5 |
| LF003 | 25.5 | 29.6 | 19 | M5 | 25 | 5.5 | 3.5 |
| LF004 | 34 | 38 | 25 | M6 | 16 | 8.5 | 7.5 |
*Tolerance on I ±2mm
