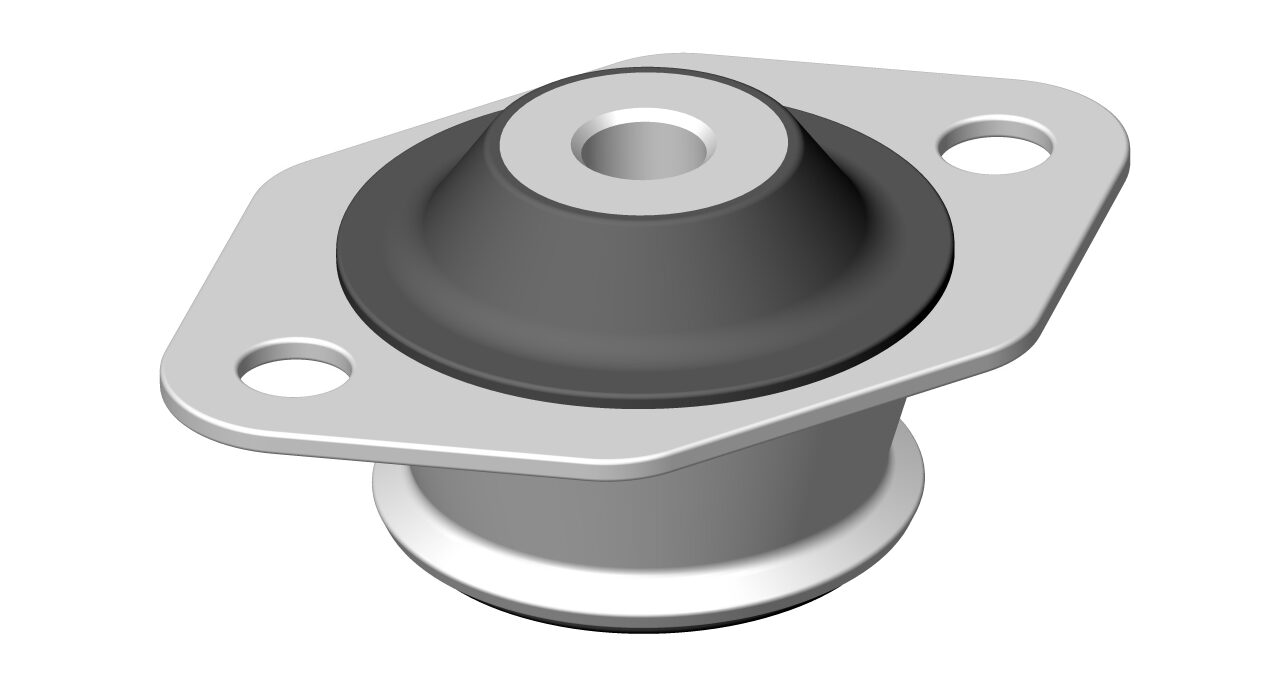

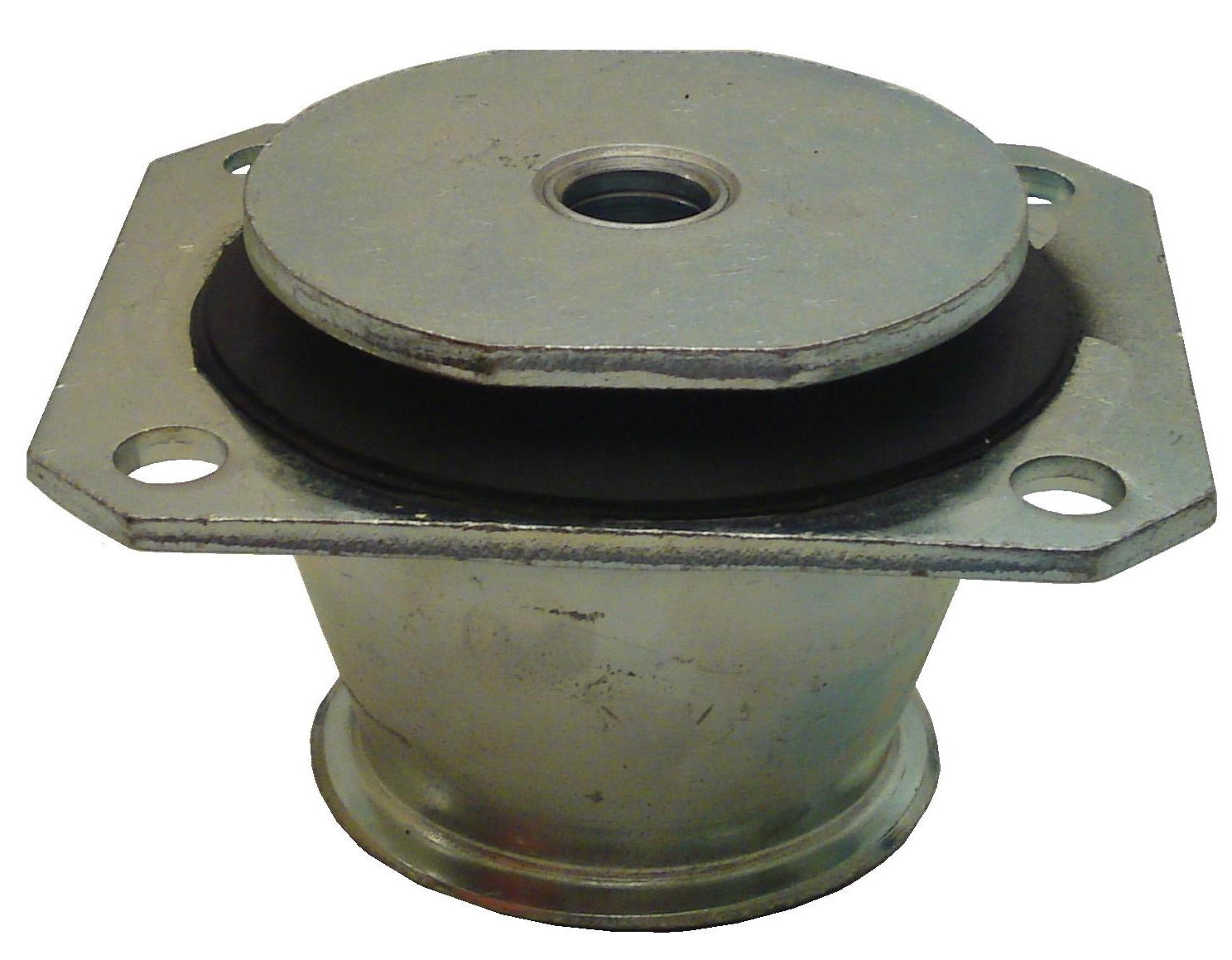

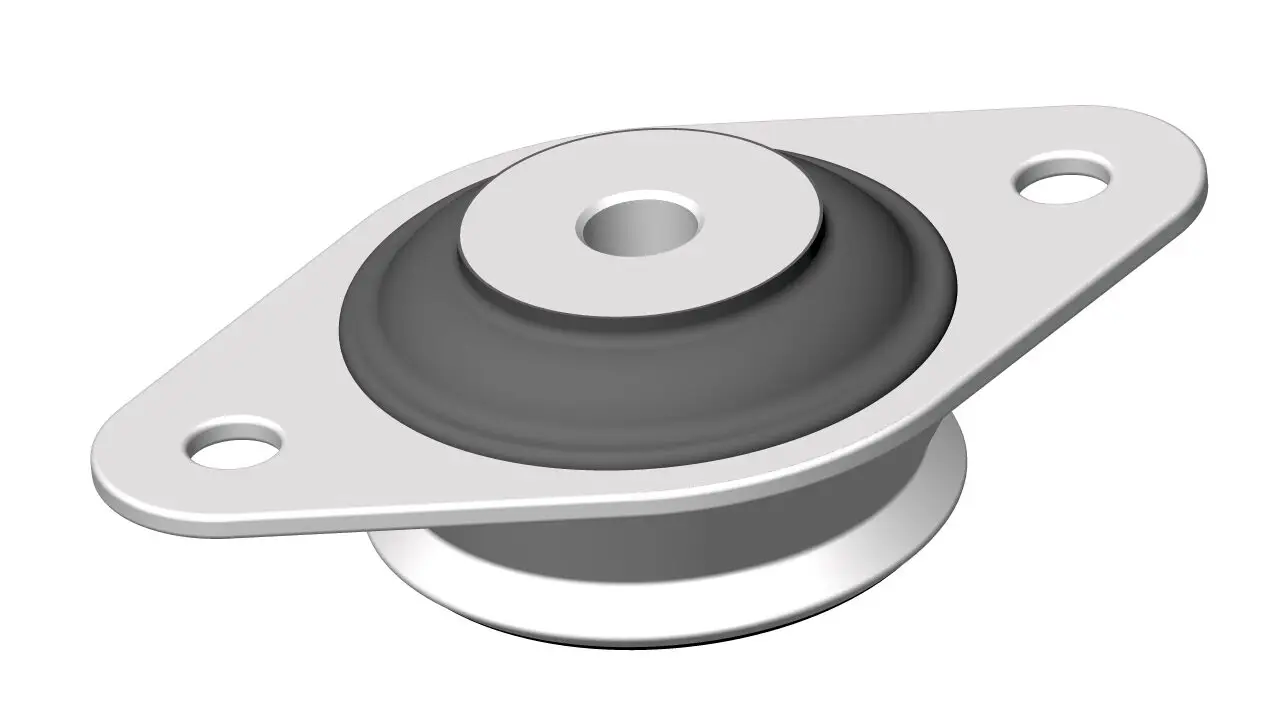

Cone Mounts

Cone mounts are conical anti-vibration mounts that provide exceptional vibration isolation and shock absorption. The cone mount design provides high stability in both axial and radial loads. These versatile anti-vibration/shock mounts are compact, extremely robust, easy to install, and built for long-lasting performance under challenging conditions. Equipped with stop and centring washers, cone mounts offer a fail-safe mechanism that ensures safety and reliability even under extreme compression or tensile stresses. Their robust design makes them an ideal choice for applications where vibration damping and structural integrity are critical.

Cone mounts use a compressible rubber interface between inner and outer metal cones. This design provides progress load response and excellent damping. They have a soft vertical compliance but strong radial stiffness.

Why Choose Our Cone Mounts?

Cone mounts are the ultimate solution for reducing vibration and protecting machinery, thanks to their unique design and fail-safe features. Here’s why they are the preferred choice:

• Dual Functionality: Designed to work efficiently in compression, they handle shear loads extremely well
• Fail-Safe Mechanism: Stop and centring washers prevent deformation during extreme compression or tension, ensuring safety.
• Optimal Vibration Damping and Noise Reduction: The conical rubber shape provides efficient vibration isolation under compression loads
• Durability and Longevity: High-quality natural rubber and materials together with the cone mountings design, handle heavy loads and high stress even in the most rugged applications.
• Wide Load Range: Suitable for loads from 37 kg to 1,850 kg, making them adaptable to various heavy-duty applications.

Applications of Cone Mounts

Cone mounts are reliable for numerous industrial, automotive or off-highway applications where vibration control and stability are essential. Common uses include:

• Genset Mounts: Ensure stability and minimise vibration in power generation units.
• Engine and Gearbox Mounts: Protect engines and gearboxes from excessive vibration, improving operational efficiency.
• Chassis Mounts: Provide enhanced stability and vibration control for vehicle chassis systems.
• Compressor Mounts: Dampen vibrations in industrial compressors to reduce wear and noise.
• Pump Mounts: Ensure smooth operation of pumps by minimising vibration-induced damage.
• Cab Mountings: Enhance comfort and reduce vibrations in vehicle cabs or machinery operator stations.

Technical Characteristics of Cone Mounts

• Load Ratings: 37 – 1,850 kg
• Designed to handle high shear loads while mounted in compression applications
• Fail-Safe Protection: Stop and centring washers prevent deformation under extreme stresses
• Compact Design: Space-saving and easy to install
• Corrosion Resistance: Treated metals for durability in harsh environments
• Rubber Protection: Washers shield the rubber from ozone and oil

Note to dev: Please insert the max load ratings table.

Order Cone Mounts from Seal’ n Devices Today!

Contact us today to learn more about our products or request a quote for your specific needs. Let Seal’ n Devices deliver the durable and innovative solutions your industry demands.
