CONCAVE MOUNTING
Concave Rubber Anti-Vibration Mounts

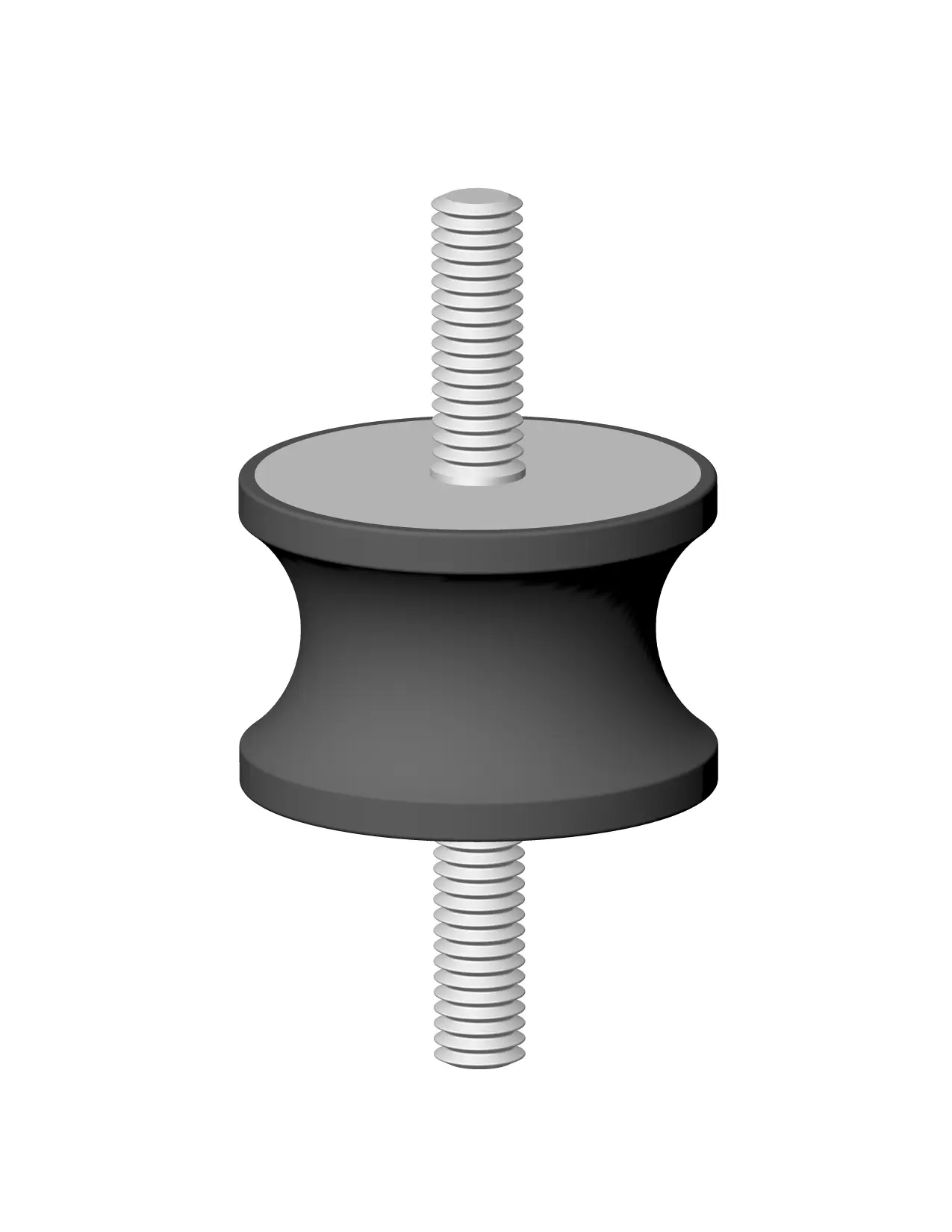

Concave mounts (also known as waisted bobbins or narrow waist mounts), are an affordable, versatile, and easy-to-install anti-vibration mount designed to provide superior vibration isolation for delicate equipment and instruments. Concave mounts or waisted bobbin shave a unique design, or narrow waist which are ideal for applications requiring exceptional stability, durability, and reliability. Whether you need anti-vibration mounts to support light or moderate loads, the concave or waisted bobbin type rubber mounting, provides optimal performance in compression or shear applications.
Why Choose Anti-Vibration Pads?
Concave mounts are manufactured using high quality materials and are an excellent choice for various applications.
- Cost-Effective: Waisted bobbins are Inexpensive yet high-performing, they offer great value for their price.
- Easy to Install: Simplified installation process ensures minimal downtime and effort.
- Versatile Applications: Effective for both compression and shear loads, making them suitable for multiple uses.
- Delicate Equipment Protection: The concave shape offers a high metal-bonded area-to-rubber cross-section ratio at the “waist,” delivering superior vibration damping to protect sensitive instruments.
- Load Capacities: Narrow waist concave mountings have load capacities range from very low loads to 260 kg, accommodating various operational needs.
- Customisable: We can manufacture concave mounts in any shape or form and using many materials, natural or synthetic rubbers or different metals, such as stainless.
Concave Mounts / Waisted Mount

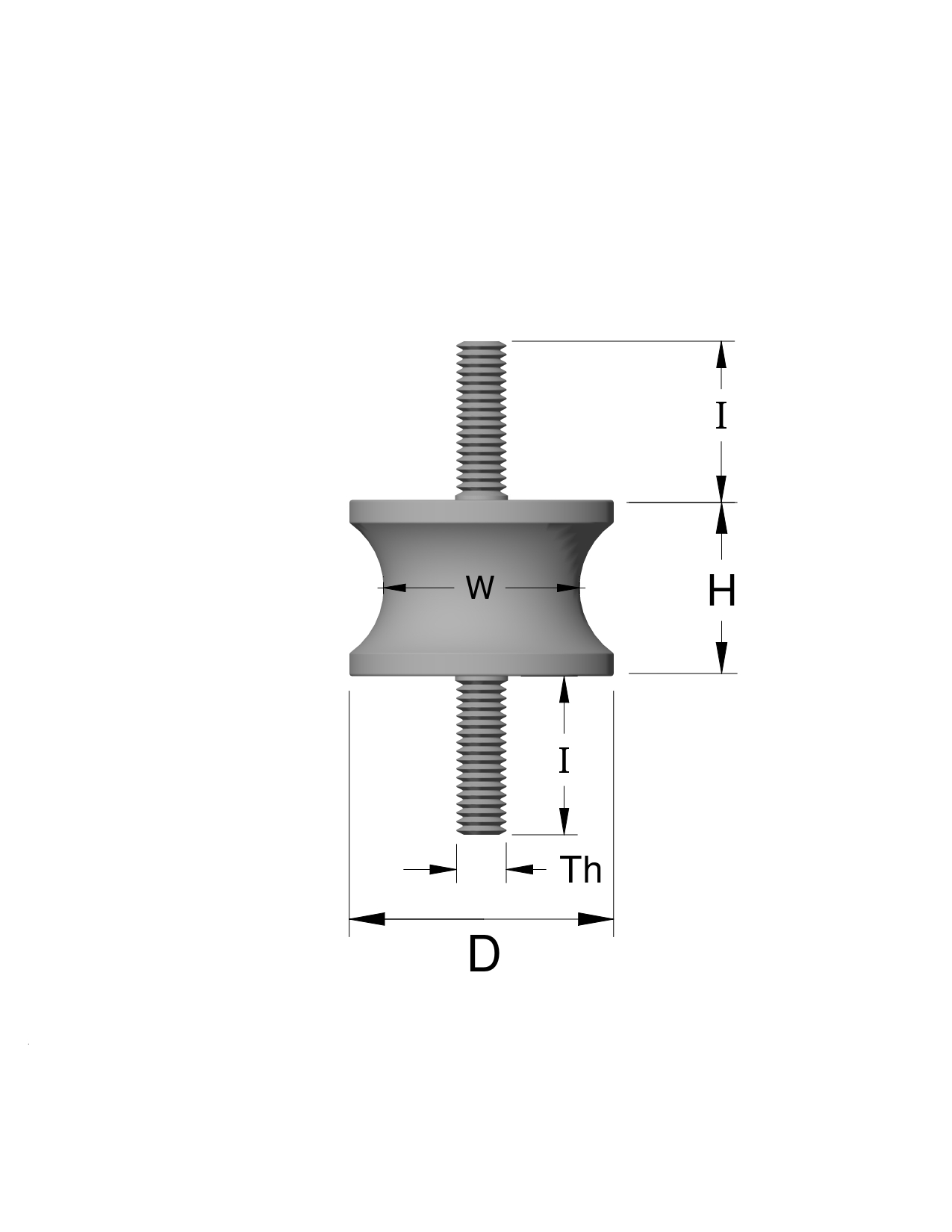

| Part No. | D (mm) | W (mm) | H (mm) | Th | I (mm) | Load (KG) | Deflection (mm) |
|---|---|---|---|---|---|---|---|
| CONC2020M6MM-45 | 20 | 14 | 20 | M6 | 18 | 8 | 1.8 |
| CONC2020M6MM | 20 | 14 | 20 | M6 | 18 | 14 | 1.8 |
| CONC2522M8MM | 25.5 | 20 | 22 | M8 | 20 | 29 | 2.0 |
| CONC3020M8MM | 30 | 24 | 20 | M8 | 23 | 40 | 3.9 |
| CONC4030M8MM | 40 | 20 | 30 | M8 | 23 | 21 | 3.0 |
| CONC5443M8MM | 54 | 35 | 43 | M8 | 23 | 75 | 5.0 |
| CONC6060M10MM | 60 | 50 | 60 | M10 | 27 | 150 | 7.5 |
| CONC8070M16MM | 80 | 70 | 70 | M16 | 50 | 260 | 9.0 |
* Tolerances on I = ±3mm
* Contact us for non-standard/custom sizes
Order Concave Mounts from Seal' n Devices Today!
Contact us today to learn more about our products or request a quote for your specific needs. Let Seal’ n Devices deliver the durable and innovative solutions your industry demands.
