CIRCULAR MOUNTS Type B Male Female

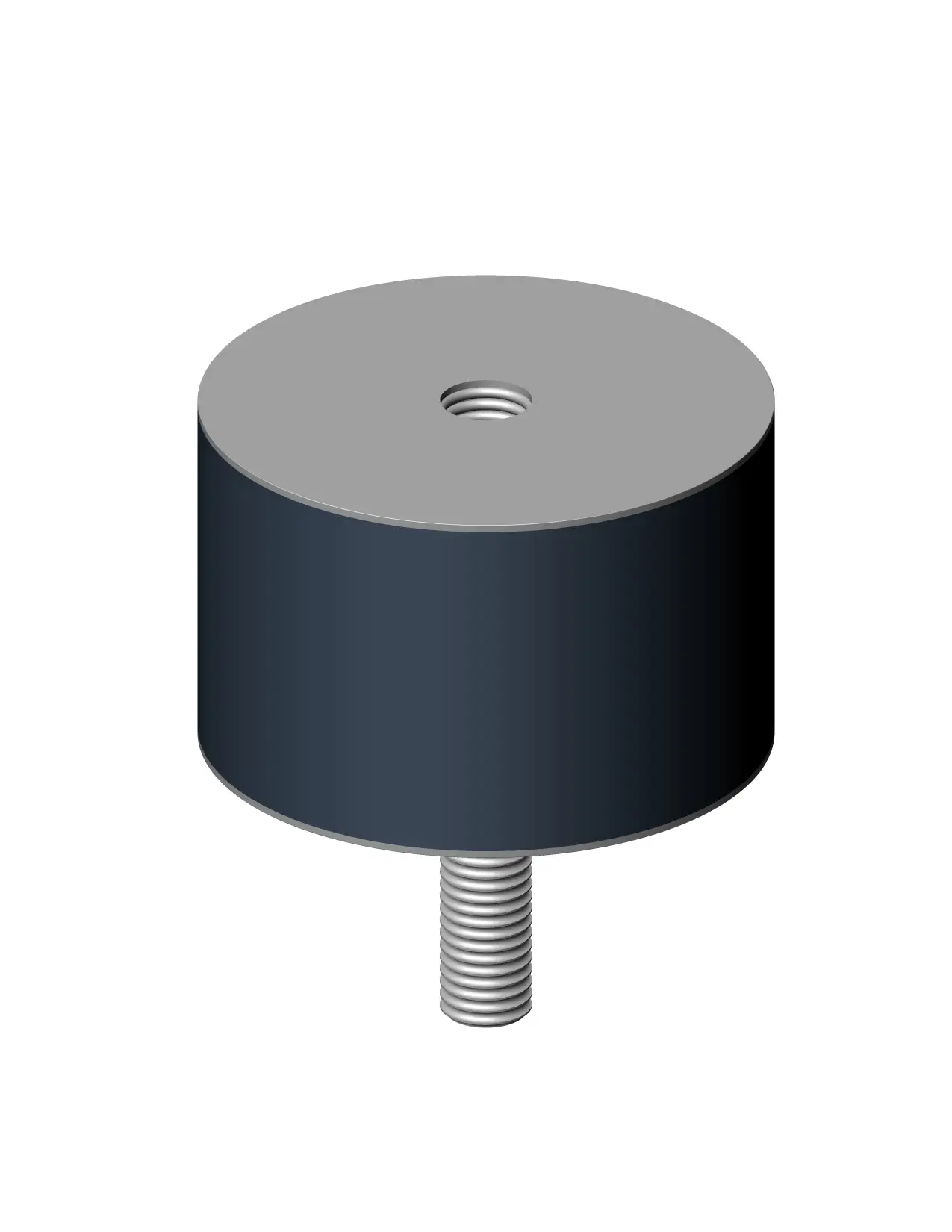

Circular Mounts - Male Female

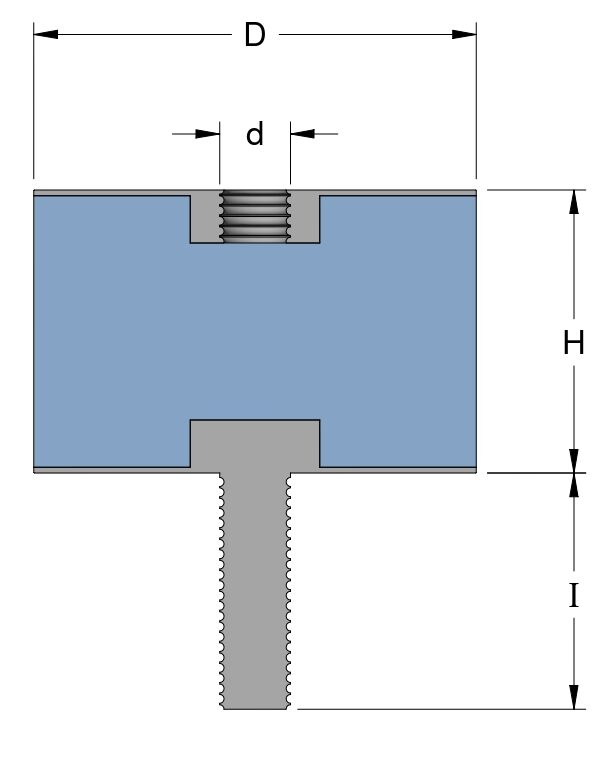

Type B (Parallel Sides)
| Part No | D (mm) | H (mm) | d | I (mm) | Rubber Hardness (Shore) | Compression Load (kg) | Deflection (mm) |
|---|---|---|---|---|---|---|---|
| 11-4-10/FT | 10 | 10 | M4 | 10 | 60 | 5 | 0.8 |
| 115-4-10/FT | 15 | 15 | M4 | 10 | 60 | 5 | 1.0 |
| 115-5-10/FT | 15 | 15 | M5 | 10 | 60 | 8 | 1.0 |
| 22-6-20/FT | 20 | 20 | M6 | 20 | 60 | 16 | 1.9 |
| 252-6-20/FT | 25 | 20 | M6 | 20 | 45 | 15 | 2.0 |
| 252-6-20/FT-60 | 25 | 20 | M6 | 20 | 60 | 25 | 1.8 |
| 32-8-25/FT | 30 | 20 | M8 | 25 | 60 | 42 | 1.6 |
| 325-8-25/FT | 30 | 25 | M8 | 25 | 60 | 40 | 2.0 |
| 33-8-20/FT | 30 | 30 | M8 | 20 | 60 | 37 | 2.6 |
| 43-8-20/FT | 40 | 30 | M8 | 20 | 45 | 42 | 3.0 |
| 43-10-20/FT | 40 | 30 | M10 | 20 | 45 | 42 | 3.0 |
| 53-10-30/FT | 50 | 30 | M10 | 30 | 60 | 156 | 2.6 |
| 54-10-30/FT | 50 | 40 | M10 | 30 | 60 | 115 | 4.0 |
| 55-10-30/FT | 50 | 50 | M10 | 30 | 60 | 100 | 4.8 |
| 64-10-30/FT | 60 | 40 | M10 | 30 | 60 | 171 | 3.0 |
| 74-10-40/FT | 75 | 40 | M10 | 40 | 60 | 300 | 3.7 |
| 74-12-40/FT | 75 | 40 | M12 | 37 | 60 | 300 | 3.7 |
| 75-10-40/FT | 75 | 50 | M10 | 40 | 60 | 250 | 4.8 |
| 75-12-40/FT | 75 | 50 | M12 | 40 | 60 | 250 | 4.8 |
| 75-12-50/FT | 75 | 50 | M12 | 50 | 60 | 250 | 4.8 |
| 15-16-40/FT | 100 | 50 | M16 | 40 | 60 | 550 | 4.9 |
| 155-16-40/FT | 100 | 55 | M16 | 37 | 60 | 525 | 5.4 |
| 145-16-50/FT | 145 | 70 | M16 | 47 | 60 | 966 | 9.5 |
| 160-16-50/FT | 160 | 70 | M16 | 47 | 60 | 1520 | 8.9 |
* FT is for Female Thread
* Tolerance on I = ±3mm
* Contact us for Non Standard Sizes
