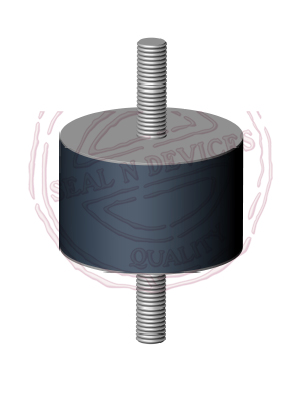

Circular Mounts Type A Male

Circular Mounts - Male Male

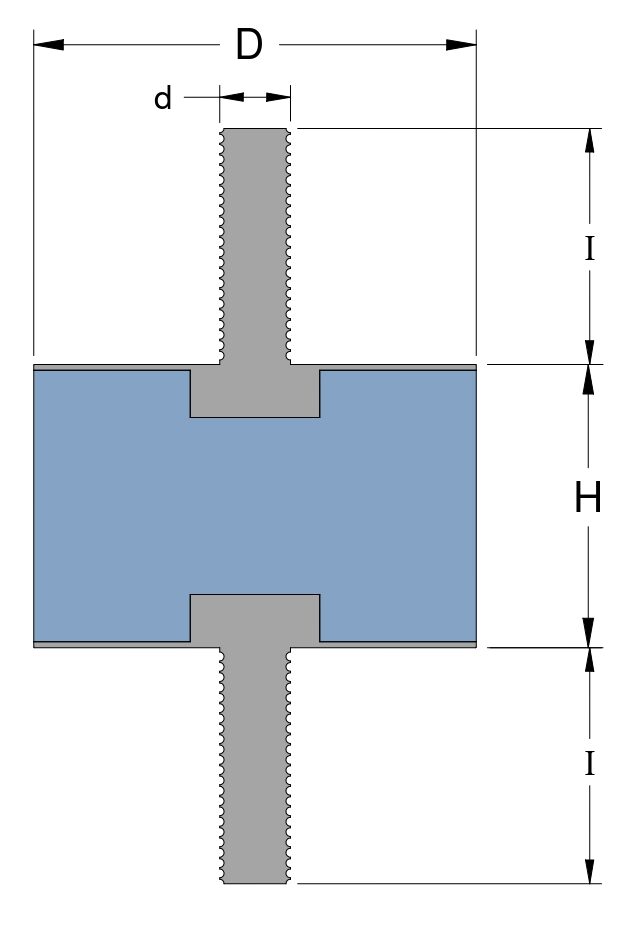

Type A (Parallel Sides)

Part No	D (mm)	H (mm)	d	I (mm)	I (mm)	Rubber Hardness (Shore)	Compression Load (kg)	Deflection (mm)
0707-3-7-7	8	8	M3	6	6	60	3	0.6
108-4-10/10	10	8	M4	10	10	60	4.3	0.6
11-4-10/10	10	10	M4	10	10	60	5	0.8
115-4-10/10	15	15	M4	10	10	60	8	1.3
115-5-10/10	15	15	M5	10	10	60	8	1.3
22-6-20/20	20	20	M6	20	20	60	16	1.9
251-6-18/18	25	10	M6	18	18	60	40	1.5
252-6-20/20	25	20	M6	20	20	60	25	1.8
32-8-25/25	30	20	M8	25	25	60	42	1.6
32-8-20/40	30	20	M8	20	40	60	42	1.6
325-8-25/25	30	25	M8	25	25	60	40	2.4
33-8-20/20	30	30	M8	20	20	60	37	2.6
43-8-16/16	40	30	M8	16	16	45	42	3.0
43-8-23/23	40	30	M8	23	23	45	42	3.0
43-8-20/40	40	30	M8	20	40	45	42	3.0
43-8-20/50	40	30	M8	20	50	45	42	3.0
43-8-20/50-60	40	30	M8	20	50	60	73	2.8
43-10-20/20	40	30	M10	20	20	45	42	3.0
43-10-20/50	40	30	M10	20	50	45	42	3.0
43-10-20/50-60	40	30	M10	20	50	60	73	2.8
44-8-20/20	40	40	M8	20	20	60	68	4.0
525-10-25/25	50	25	M10	25	25	60	147	2
53-10-30/30	50	30	M10	30	30	60	156	2.6
53-10-30/50	50	30	M10	30	50	60	156	2.6
54-10-30/30	50	40	M10	30	30	60	115	4.0
55-10-30/30	50	50	M10	30	30	60	100	4.8
64-10-30/30	60	40	M10	30	30	60	171	3.0
65-10-30/30	60	50	M10	30	30	60	150	4.5
74-10-40/40	75	40	M10	40	40	60	260	3.4
75-10-40/40	75	50	M10	40	40	60	250	3.5
75-12-40/40	75	50	M12	40	40	60	250	3.5
75-12-50/50	75	50	M12	50	50	60	250	3.5
15-16-40/40	100	50	M16	40	40	60	550	4.2
155-16-40/40	100	55	M16	37	37	60	550	4.5
145-16-50/50	145	70	M16	47	47	60	966	9.5
160-16-50/50	160	70	M16	50	50	60	1520	8.9

* Tolerance on I = ±3mm

* Non Standard sizes made to order
