ZTD MOUNTS
ZTD Vibration Mounts
Seal ’n Devices supplies high-quality ZTD high deflection isolators designed to deliver exceptional performance in noise and vibration isolation. Built for a variety of industrial applications, these mounts are highly efficient vibration isolators engineered for reliability, durability, and efficiency.

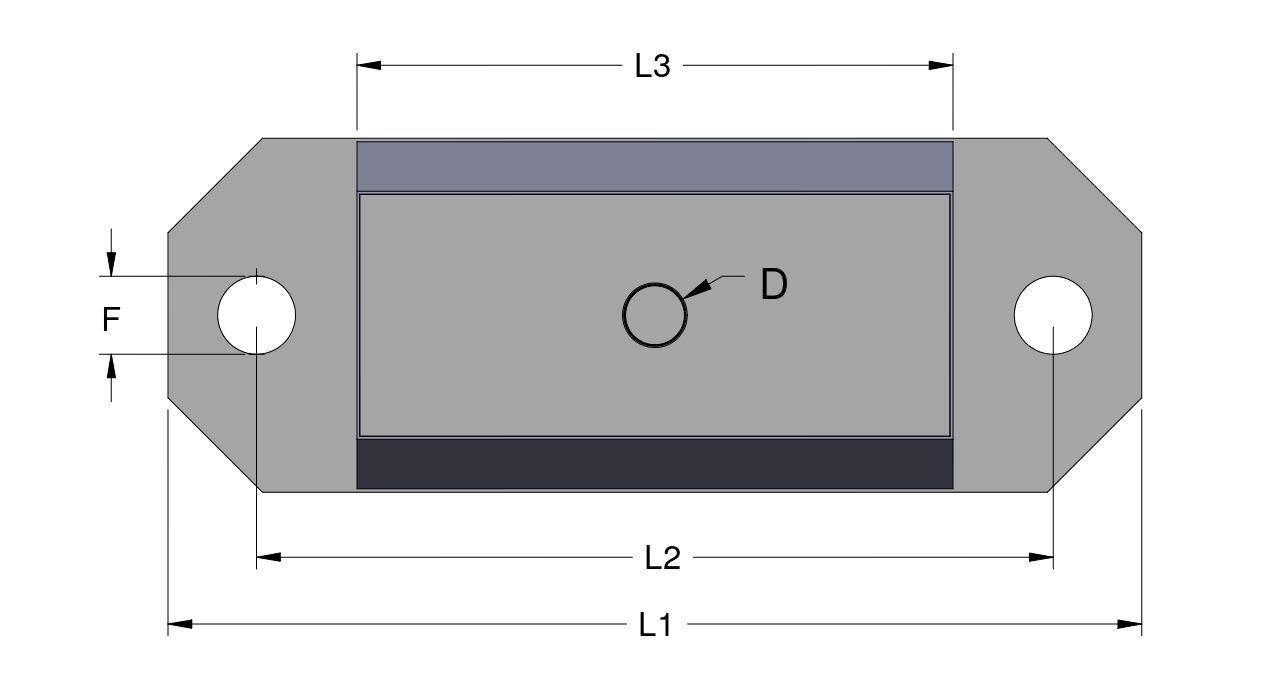

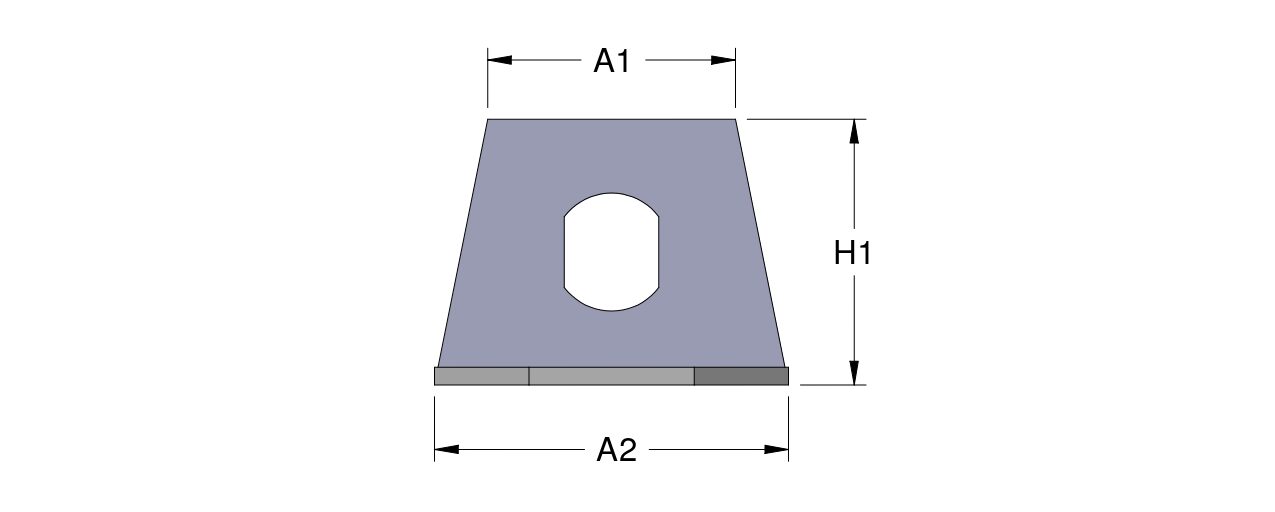

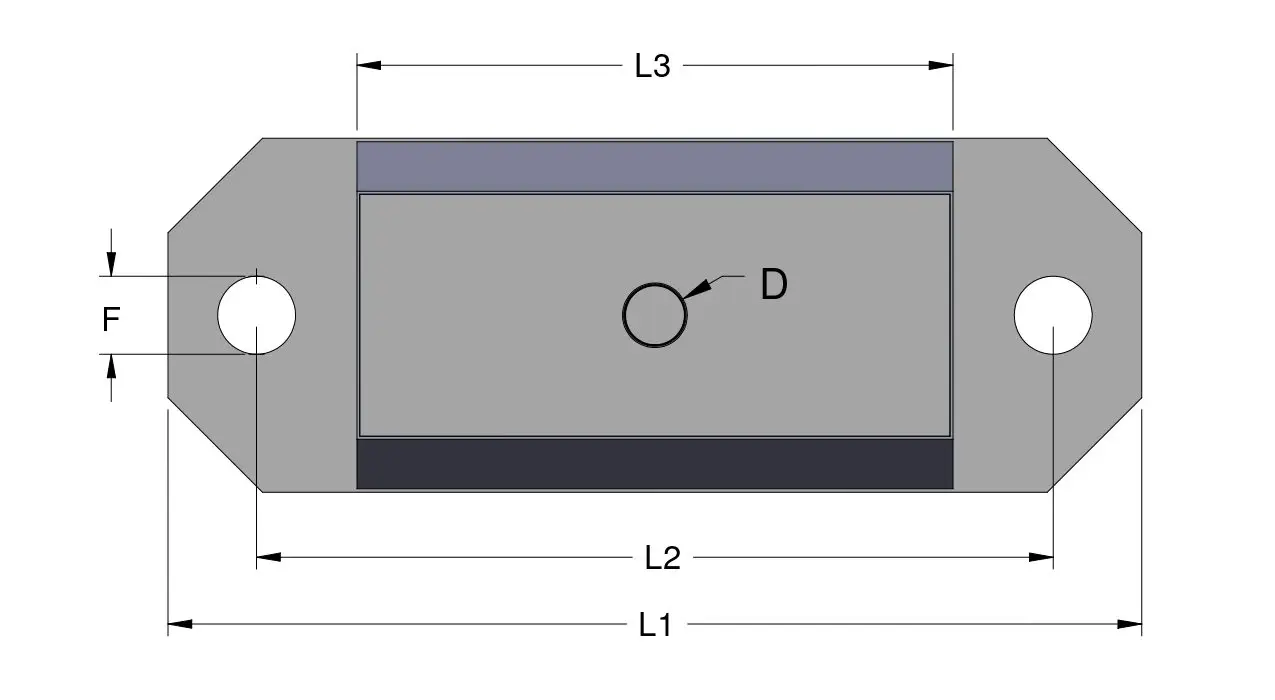

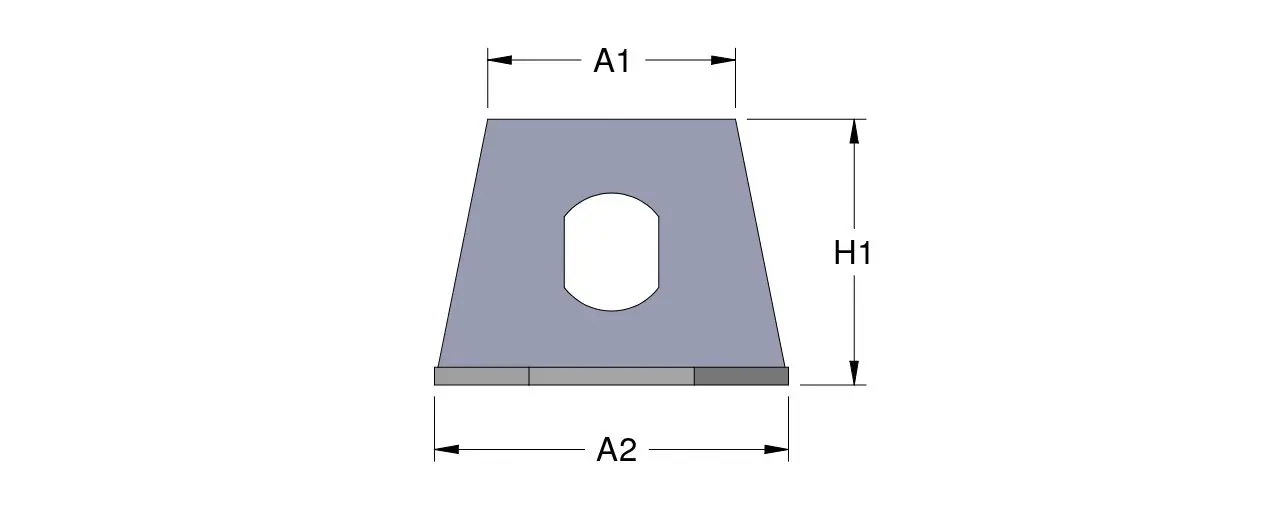

| Part No | Hardness | A1 | A2 | D | H1 | F | L1 | L2 | L3 | Max Load (kg) | Deflection (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 11550ZTD12M | 60° | 40 | 60 | M12 | 45 | 13.2 | 115 | 85 | 50 | 150 | 8.0 |
| 165100ZTD12M | 60° | 40 | 60 | M12 | 45 | 13.2 | 165 | 135 | 100 | 320 | 7.7 |

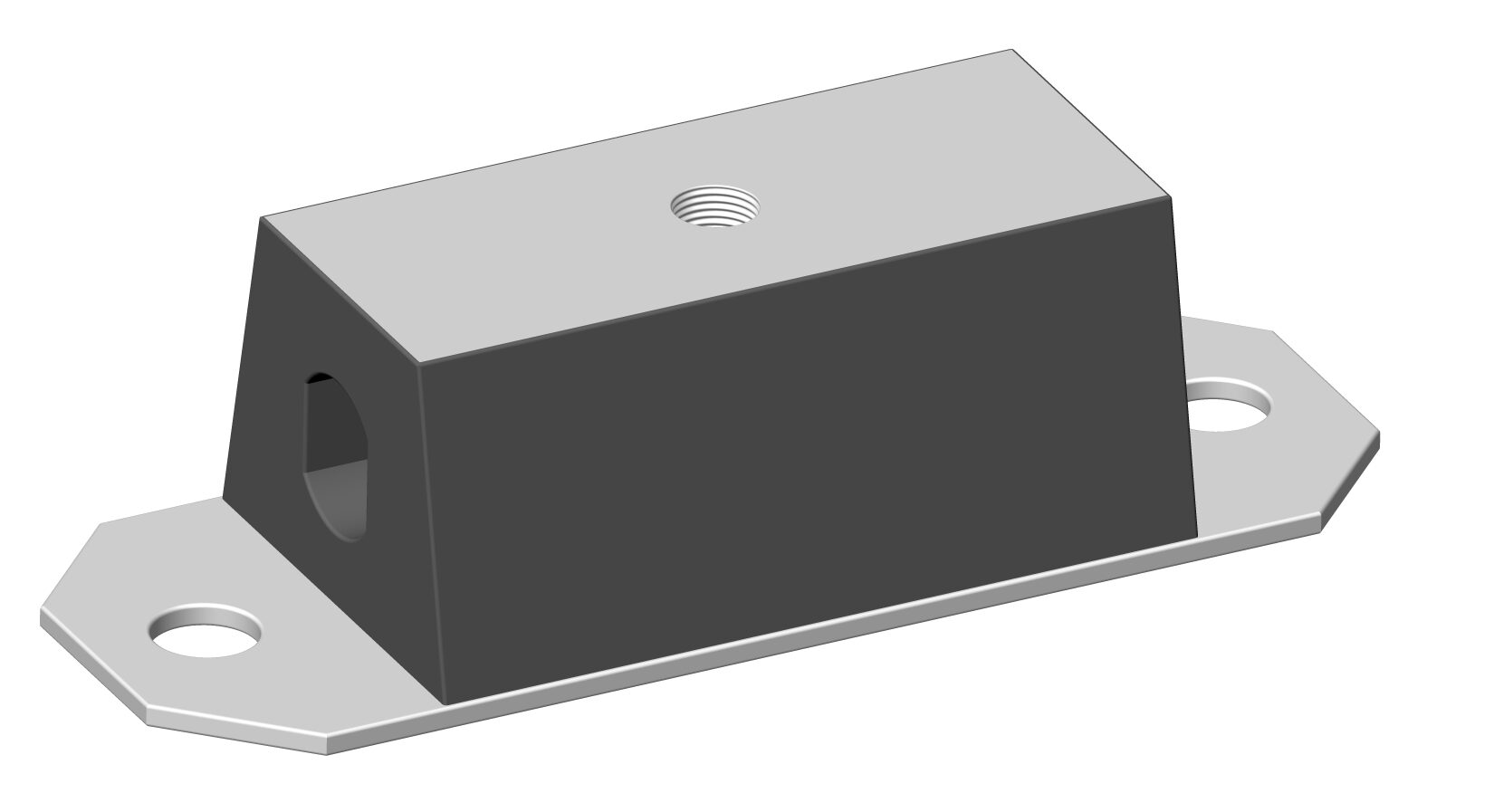

What Are ZTD Vibration Isolators?

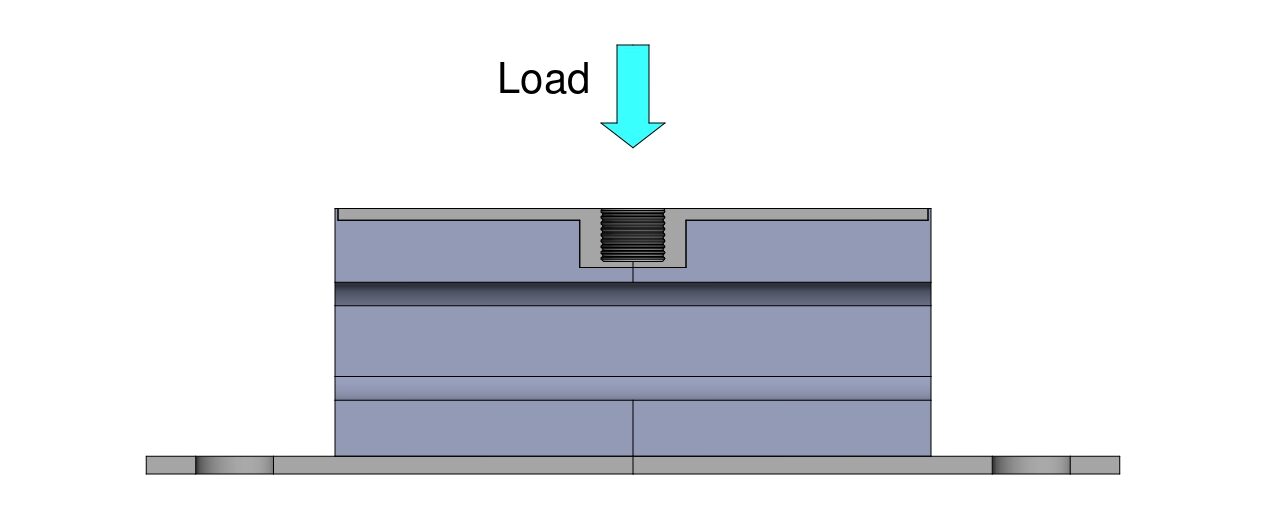

ZTD anti-vibration mounts are specialised vibration isolators designed to handle vertical loads with superior efficiency. These isolators have a hollow core which allows this mounting to achieve higher deflections. While their primary function is to absorb and isolate noise and vibration in machinery, they have also proven highly effective when used as side support mountings. This versatility makes them a trusted solution across various industrial sectors.
Key Benefits of ZTD Vibration Mounts
- Effective Vibration Isolation: ZTD rubber mounts minimise vibration transfer, ensuring smoother operation and protecting both machinery and operators.
- Noise Reduction: By dampening sound transmission, they help create a quieter and safer work environment.
- Heavy Load Capacity: Specifically engineered to handle vertical loads, ZTD vibration mounts are robust and reliable under high-stress conditions. Load range up to 320kg.
- Versatility: Although designed for vertical mounting, ZTD anti-vibration mounts are also successfully used as side support mountings, making them adaptable to different installation needs.
- Durability and Longevity: Made from high-quality materials, they are built to withstand the harsh demands of industrial use.
ZTD Anti-Vibration Mount Applications
ZTD vibration isolators are widely used across multiple industries, including:
- Measuring Equipment: Reducing external transmitted vibration and isolating it from structures.
- Small Machinery and Engines: Providing efficient vibration isolation in a wide variety of environments.
- Pumps and Compressors: Enhancing noise and vibration control.
- General Machinery: Ensuring precision in sensitive equipment operations.
Get Your High Deflection ZTD Anti-Vibration Mounts Today
Looking for the most reliable anti-vibration mounts in South Africa? Seal ’n Devices is your trusted partner for premium noise and vibration isolation solutions.
Contact us today to discuss your requirements and let our team help you choose the perfect anti-vibration mount for your application.
