HEAVY DUTY SWR MOUNTS
Type SWR are heavy duty mountings for static and shock loads in compression.
The SWR can handle loads between 2,250kg – 30,000kg.

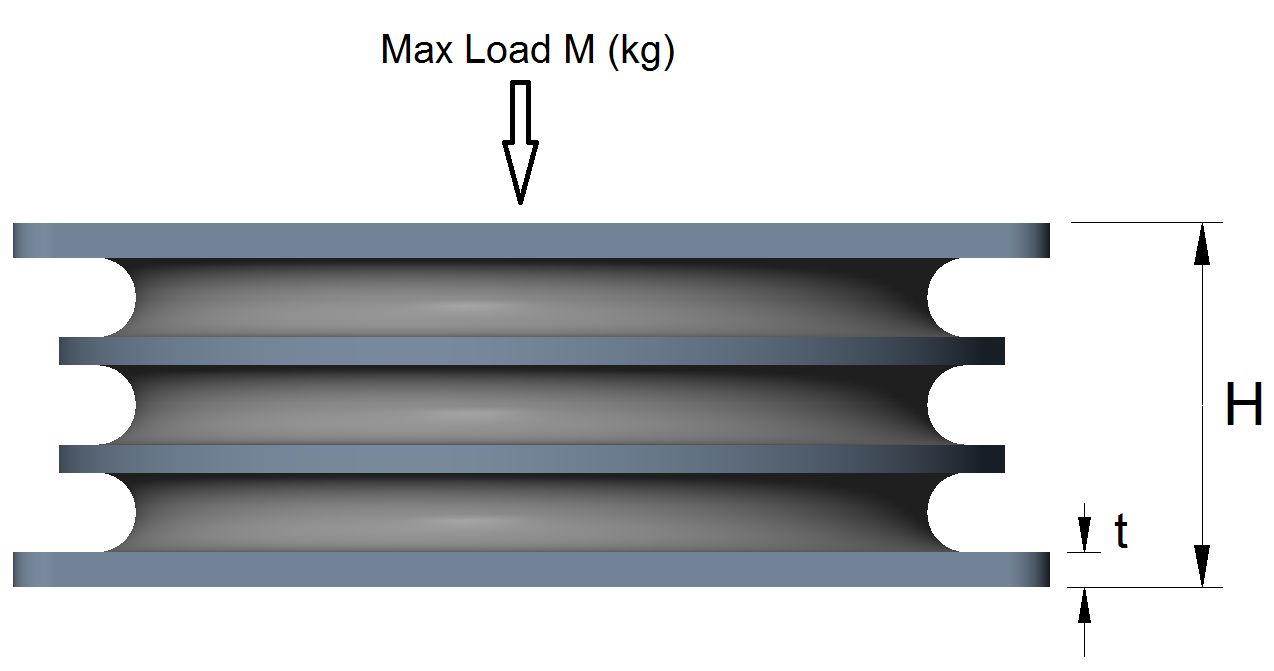

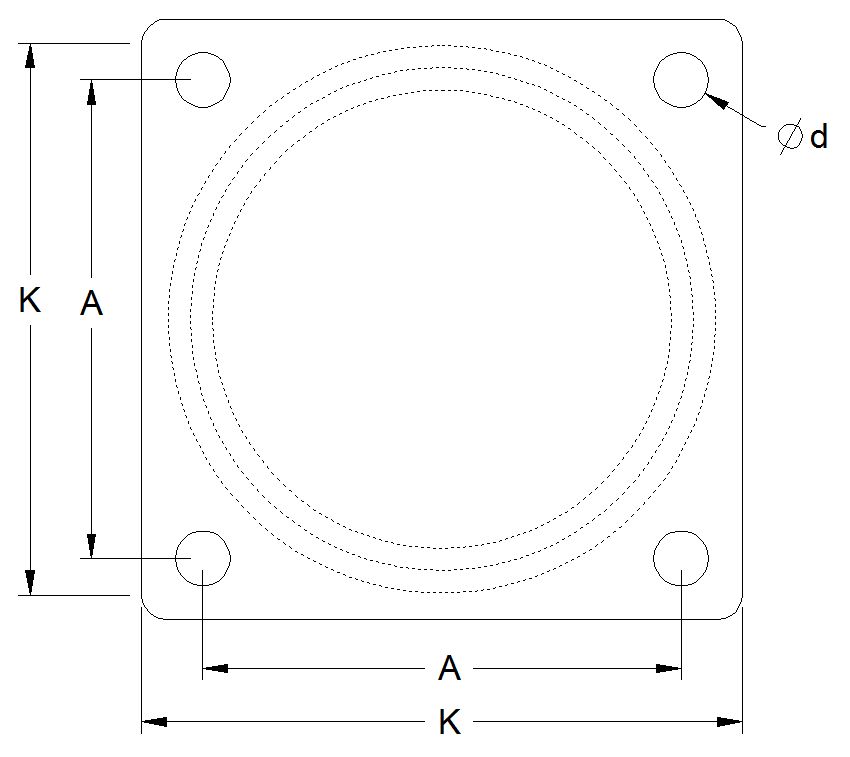

| Type | K (mm) | A (mm) | H (mm) | d (mm) | t (mm) | MAX LOAD M (kg) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SWR125-40 | 148 | 118 | 52 | 13.5 | 5 | 2250 | 2.6 |
| SWR125-60 | 148 | 118 | 52 | 13.5 | 5 | 4500 | 2.6 |
| SWR150-40 | 166 | 136 | 63 | 13.5 | 6 | 3750 | 4.1 |
| SWR150-60 | 166 | 136 | 63 | 13.5 | 6 | 7500 | 4.1 |
| SWR200-40 | 220 | 184 | 82 | 17 | 8 | 6000 | 9.2 |
| SWR200-60 | 220 | 184 | 82 | 17 | 8 | 12000 | 9.2 |
| SWR300-40 | 310 | 270 | 120 | 22 | 10 | 15000 | 27 |
| SWR300-60 | 310 | 270 | 120 | 22 | 10 | 30000 | 27 |
