MEDIUM DUTY CONE MOUNTS
Medium Duty Cone Mounts
| Item | ||||
|---|---|---|---|---|
| 45 shore | 60 shore | 70 shore | Deflection (mm) | |
| CN 60 | 100 | 170 | 250 | 5 |

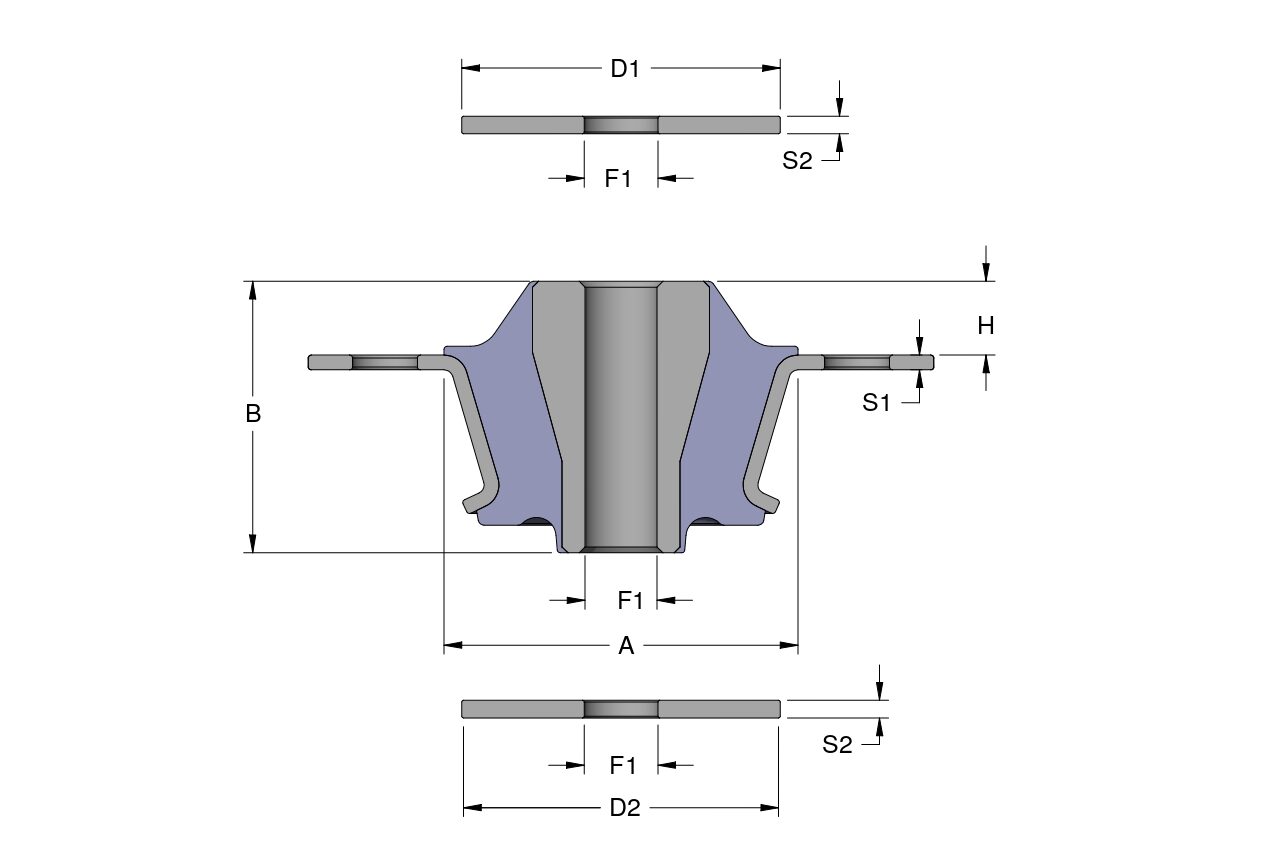

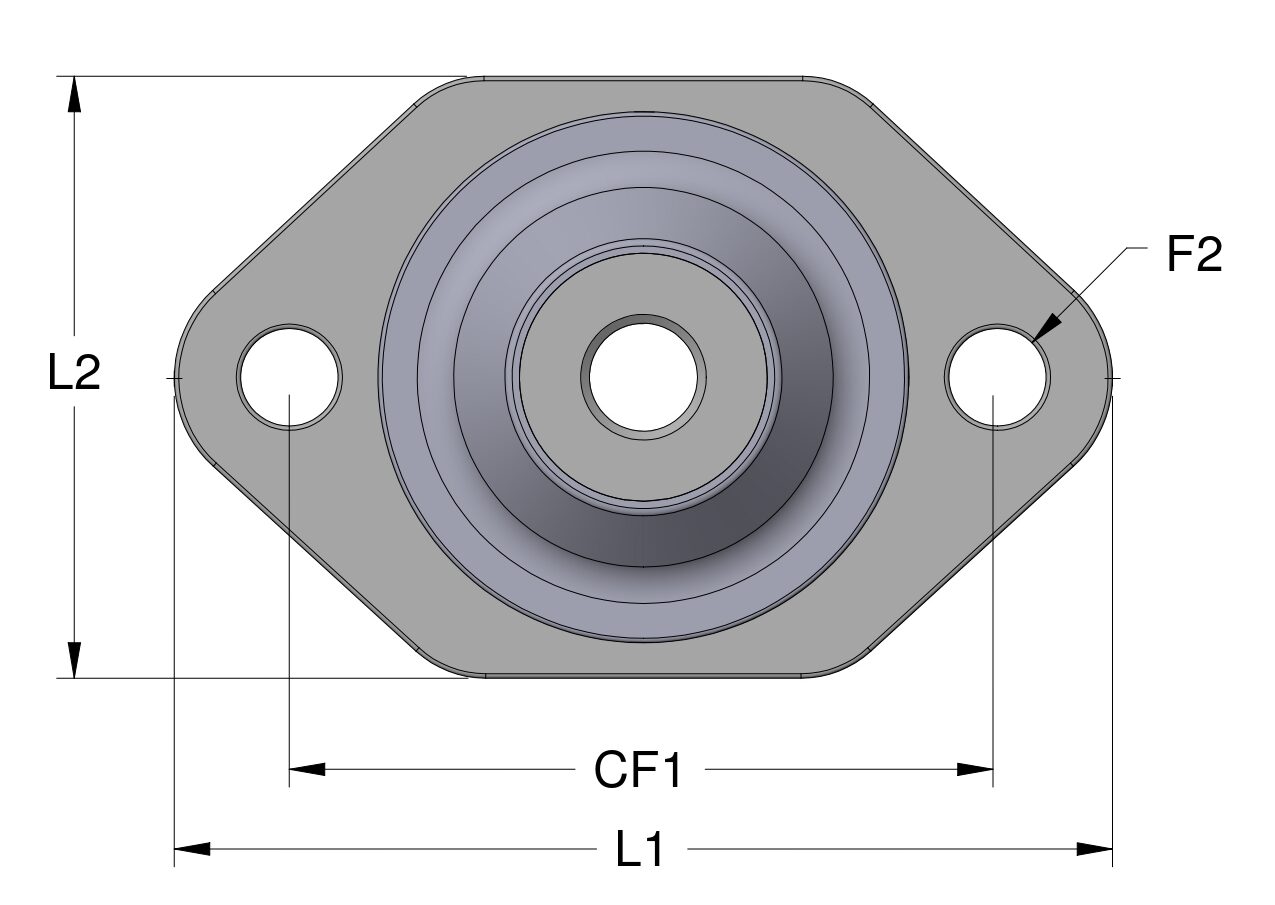

| Item | Cone | Washers | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | CF1 | L1 | L2 | H | F1 | F2 | S1 | D1 | D2 | S2 | |
| CN 60 | 60 | 45 | 80 | 107 | 68 | 10 | 12 | 11 | 2.5 | 55 | 50 | 3.5 |
Sizes all in mm
