MARINE MOUNTS
Marine Mounts

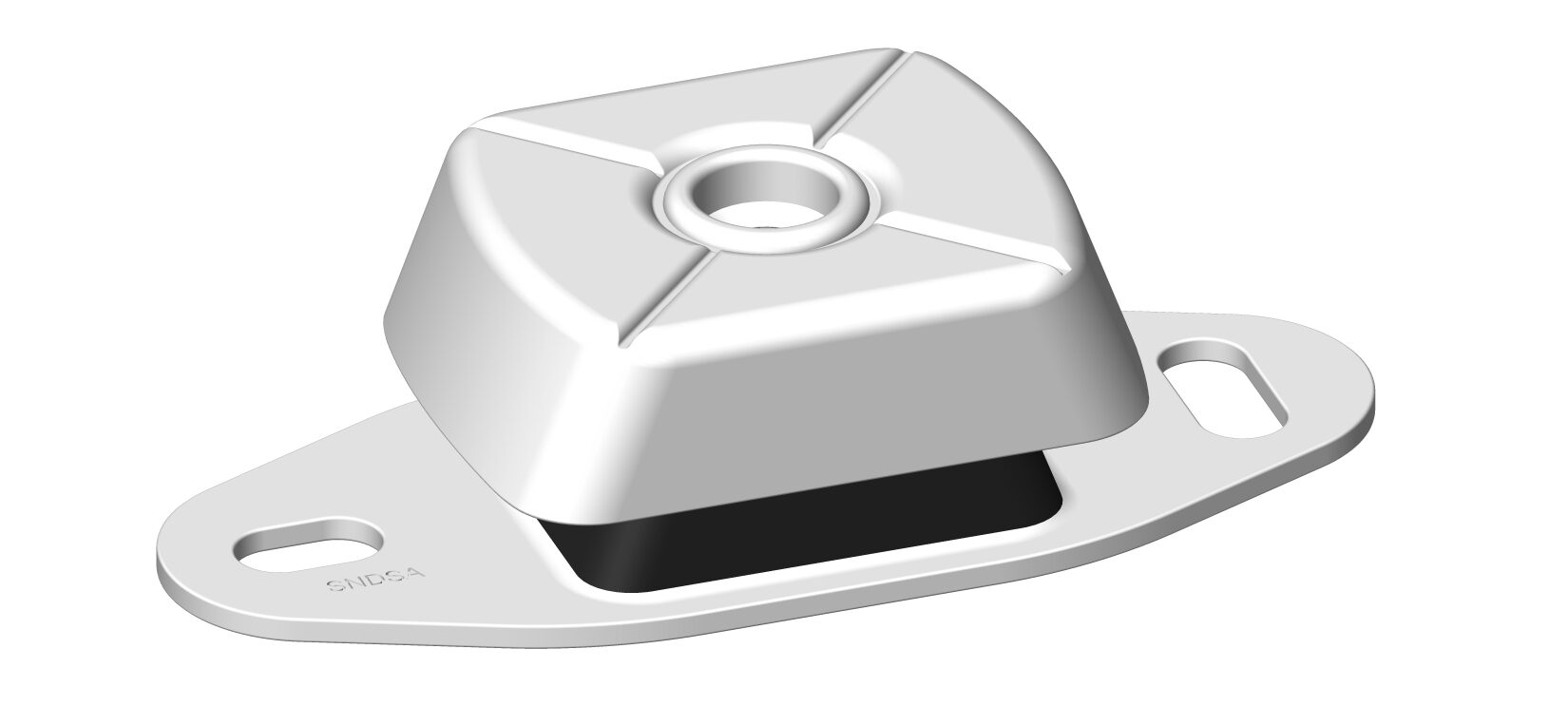

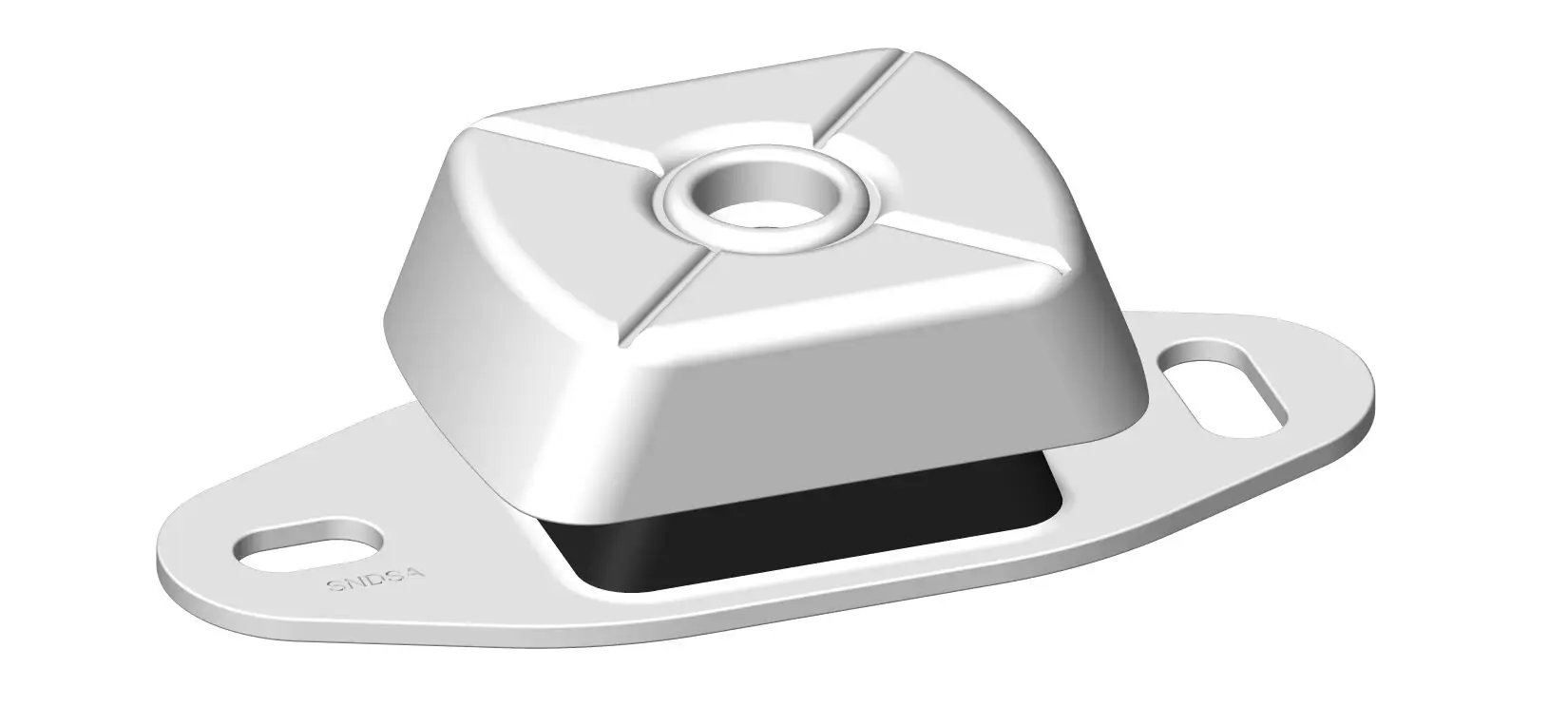

Marine Mounts were originally designed for use with marine engines and other mobile applications. It is easy to achieve relatively large static deflection with the Marine Mount range . It should be the first choice of mounting selection for marine applications as the design incorporates bump and rebound control features. The top metal shroud or cap gives protection to the rubber against oil contamination.
These mountings are ideal to cope with propeller thrust, as well as pitch and roll on marine applications.
Our range consists of 3 sizes with different rubber hardness with load capacities from 30 kg up to maximum 540 kg.
MAR1 and MAR2 are available in both Plated Mild Steel and 316 Stainless Steel. MAR3 is stocked in Plated Mild Steel however it is available in 316 Stainless Steel upon special requests.
Marine Mounts

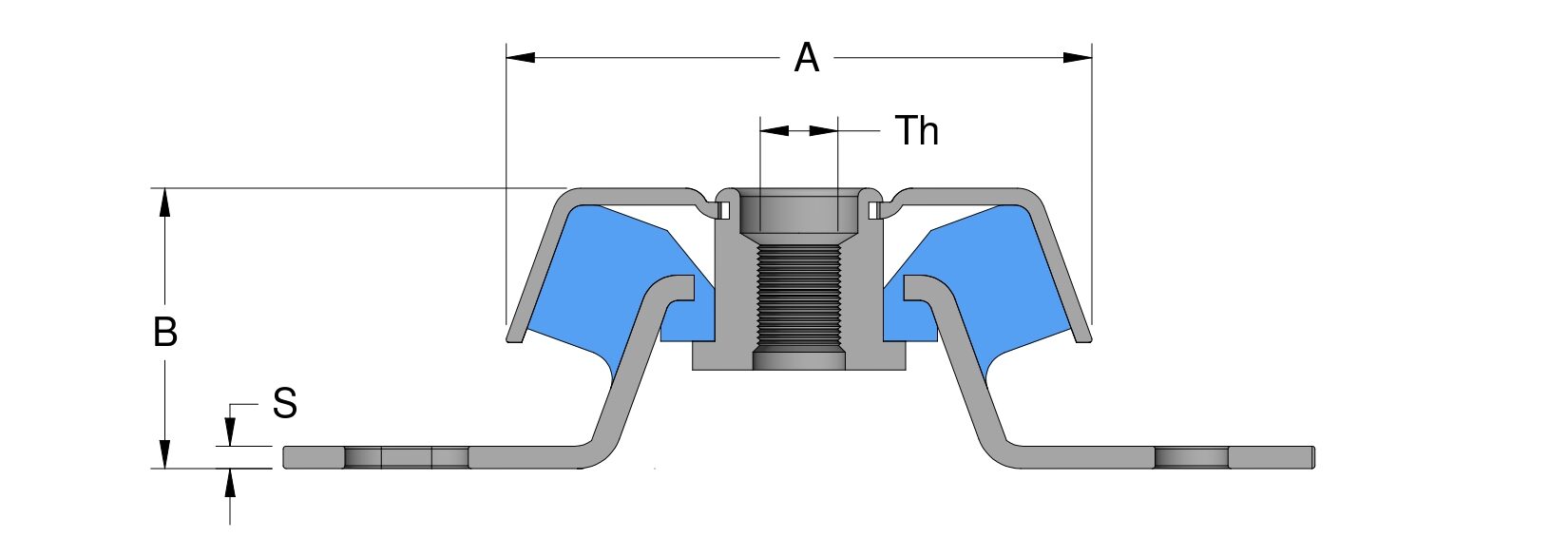

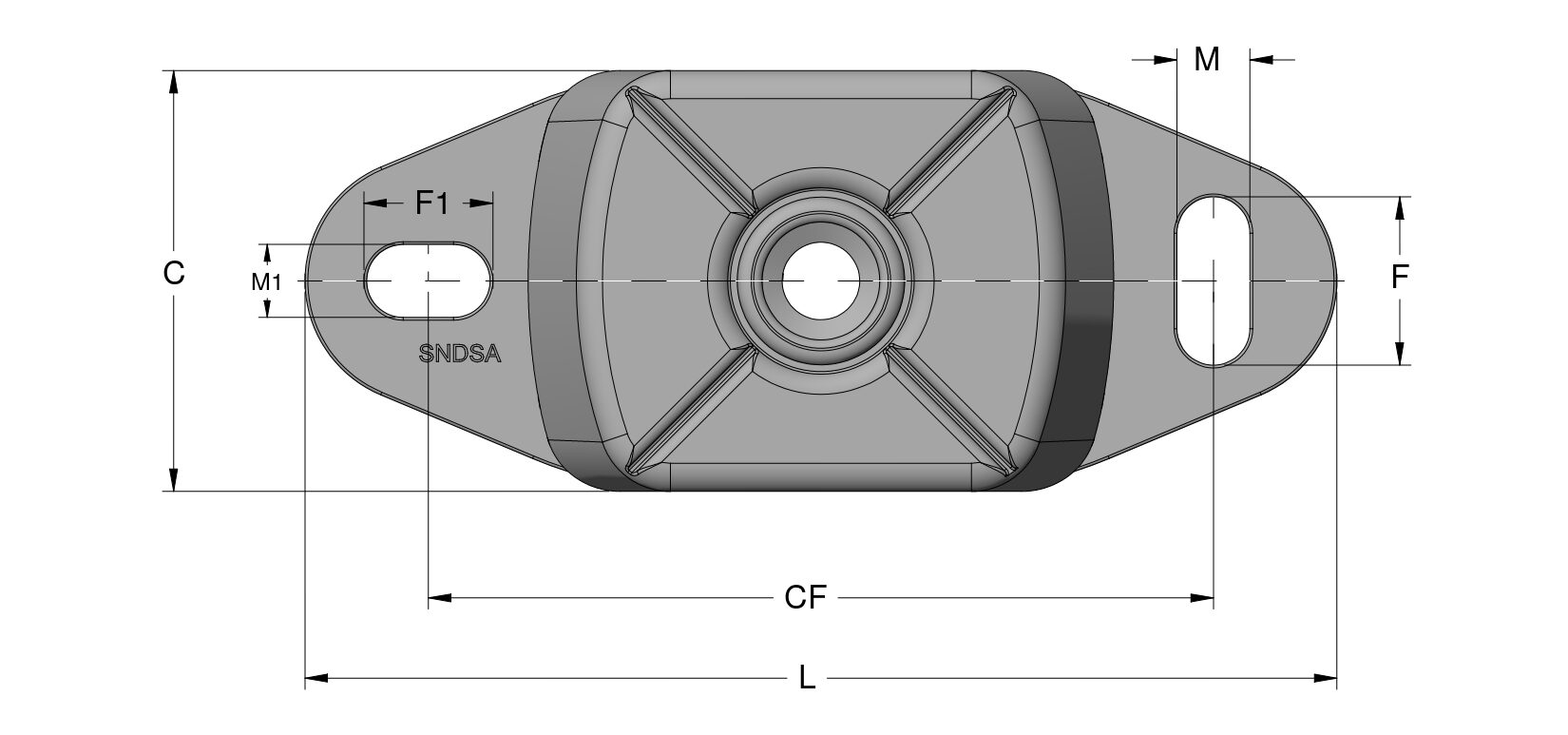

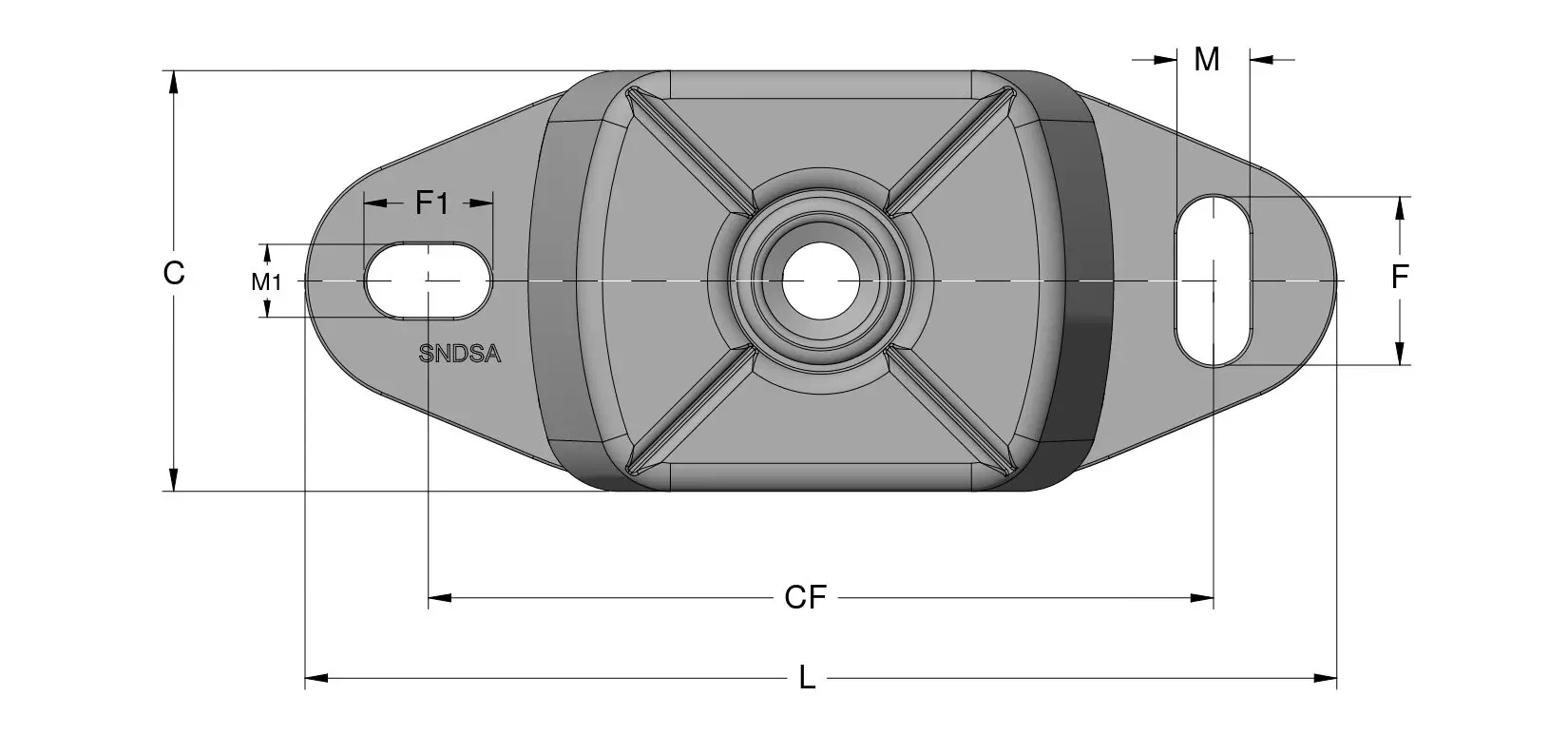

| Part No | A | B | C | CF | L | M1 | F1 | M | F | Th | S | Max Load (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAR1-45 | 80 | 38 | 60 | 100 | 120 | 11 | 14 | 11 | 14 | M12 | 3 | 35 |
| MAR1-60 | 80 | 38 | 60 | 100 | 120 | 11 | 14 | 11 | 14 | M12 | 3 | 65 |
| MAR2-45 | 104 | 49 | 75 | 140 | 183 | 13 | 20 | 13 | 30 | M16 | 4 | 120 |
| MAR2-60 | 104 | 49 | 75 | 140 | 183 | 13 | 20 | 13 | 30 | M16 | 4 | 190 |
| MAR3-40 | 132 | 71 | 112 | 182 | 230 | 18 | 26 | 18 | 34 | M20 | 5 | 330 |
| MAR3-60 | 132 | 71 | 112 | 182 | 230 | 18 | 26 | 18 | 34 | M20 | 5 | 540 |
