LIGHT DUTY

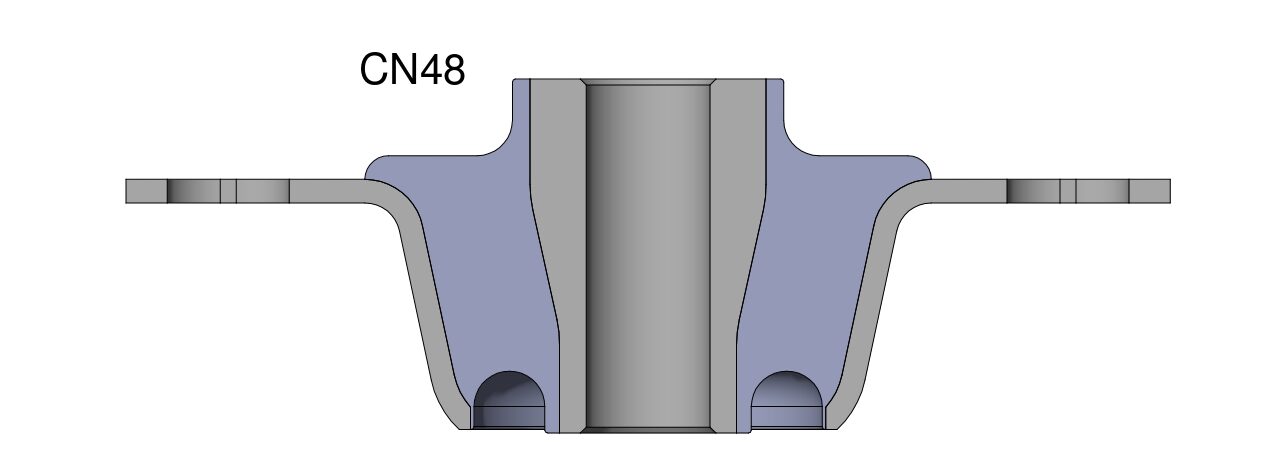

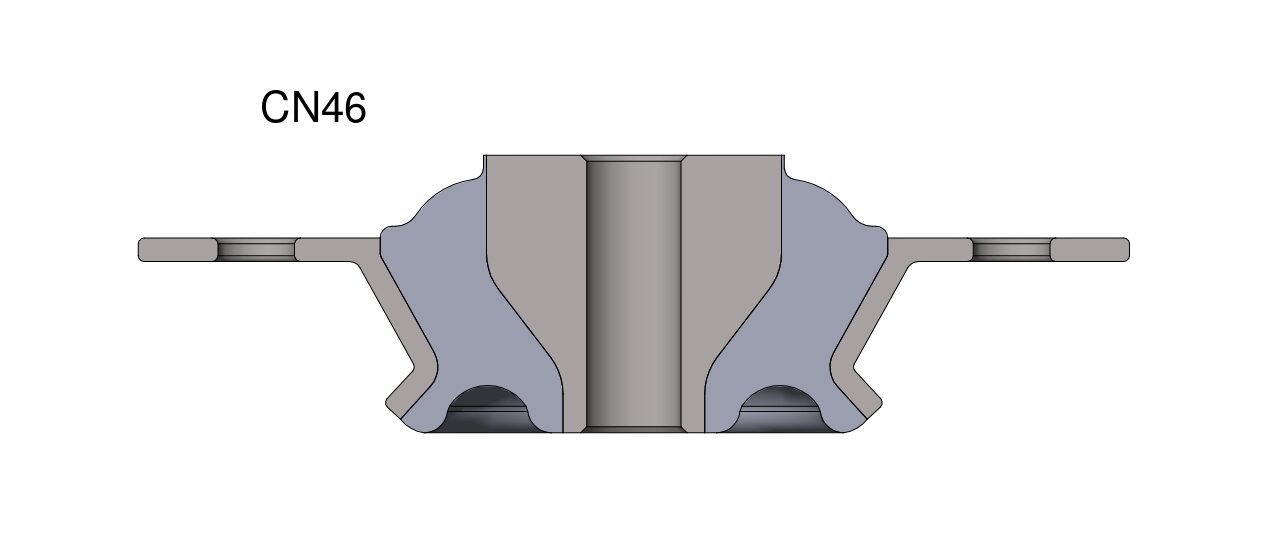

CONE MOUNTS
Light Duty Cone Mounts
| Item | ||||
|---|---|---|---|---|
| 45 shore | 60 shore | 70 shore | Deflection (mm) | |
| CN 46 | 37.5 | 66 | 108 | 3 |
| CN 48 | 36 | 60 | 84 | 4 |
| Item | Cone | Washers | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

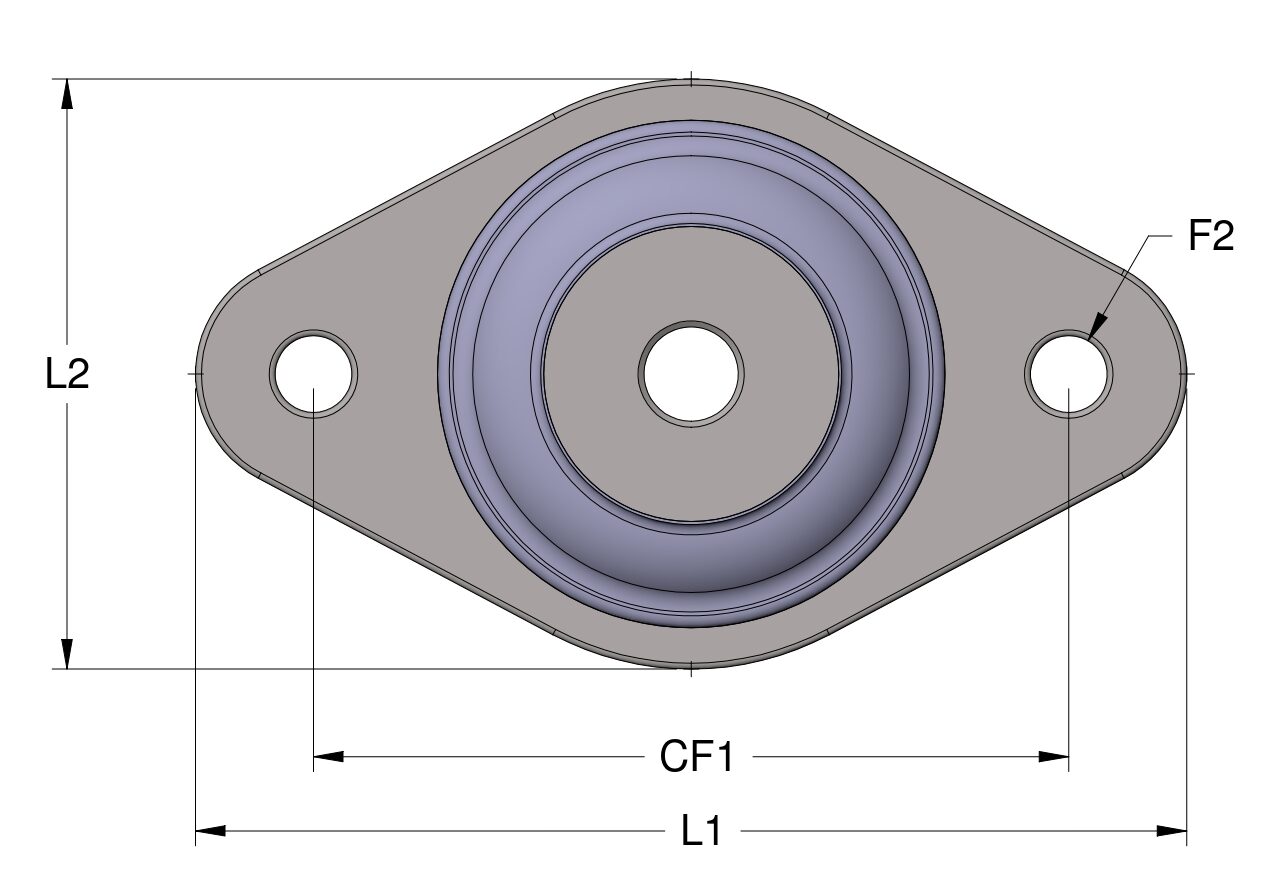

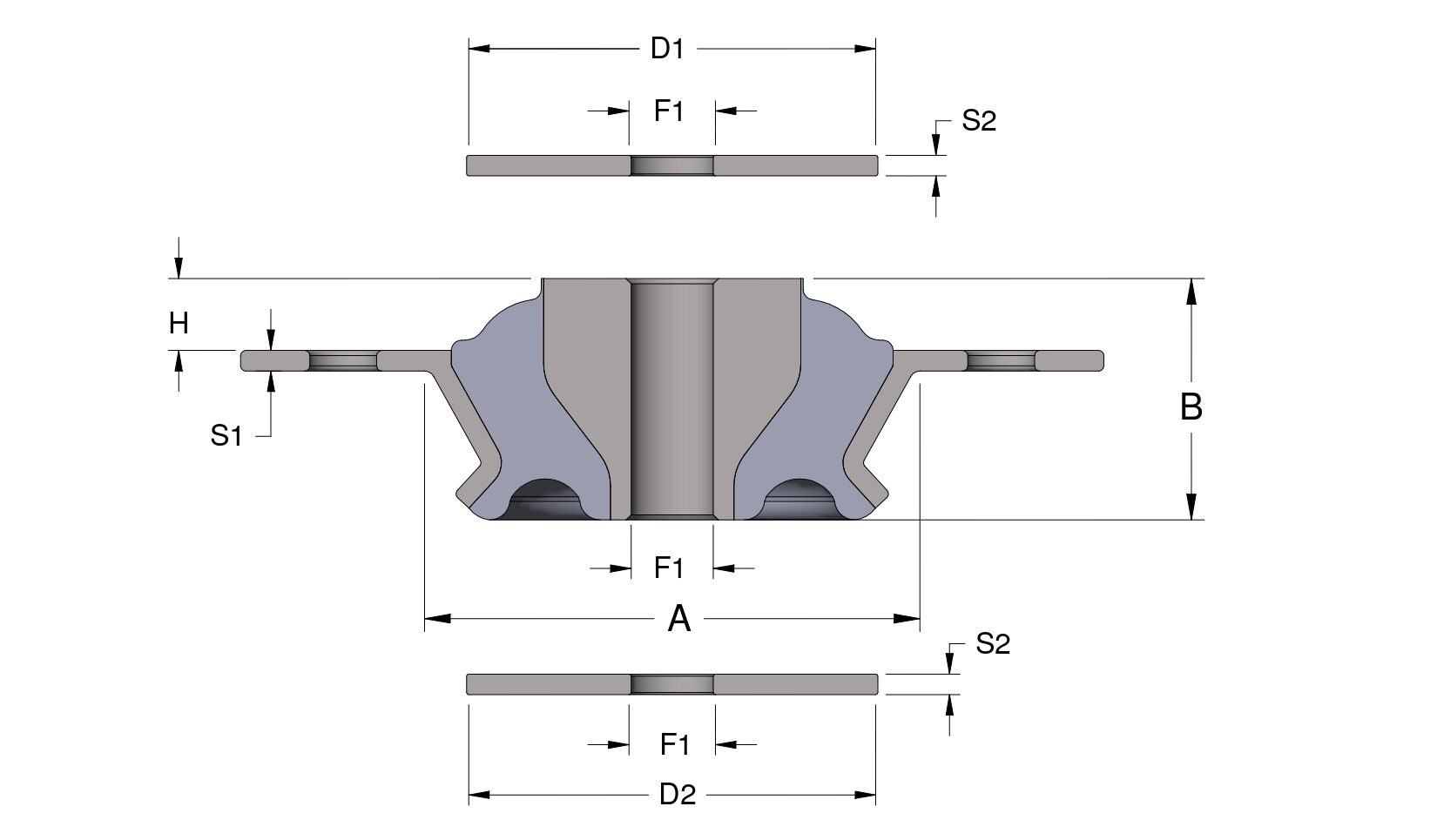

| A | B | CF1 | L1 | L2 | H | F1 | F2 | S1 | D1 | D2 | S2 | |
| CN 46 | 46 | 23.5 | 64 | 84 | 50 | 7.5 | 8 | 6.5 | 2 | 40 | 40 | 2 |
| CN 48 | 48 | 30.2 | 73 | 89 | 54 | 8 | 10 | 8.7 | 2 | 49 | 34 | 2 |
Sizes all in mm
