FRS MOUNTING / HIGH DEFLECTION FAILSAFE MOUNTS
Failsafe Mounts
FRS 60 / 100 / 200 / 350 / 500 / 800
FRS 1800 / 2200

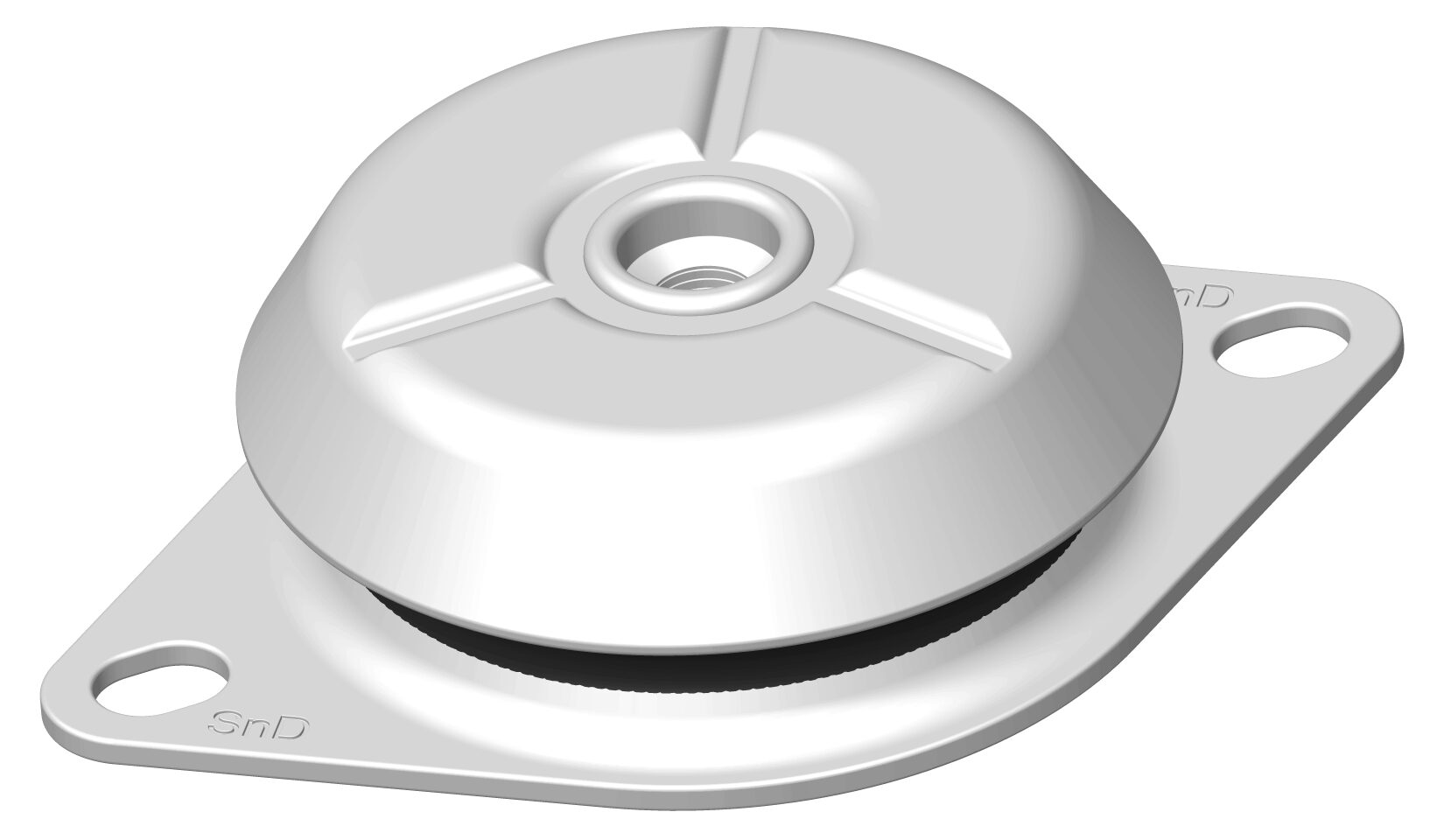

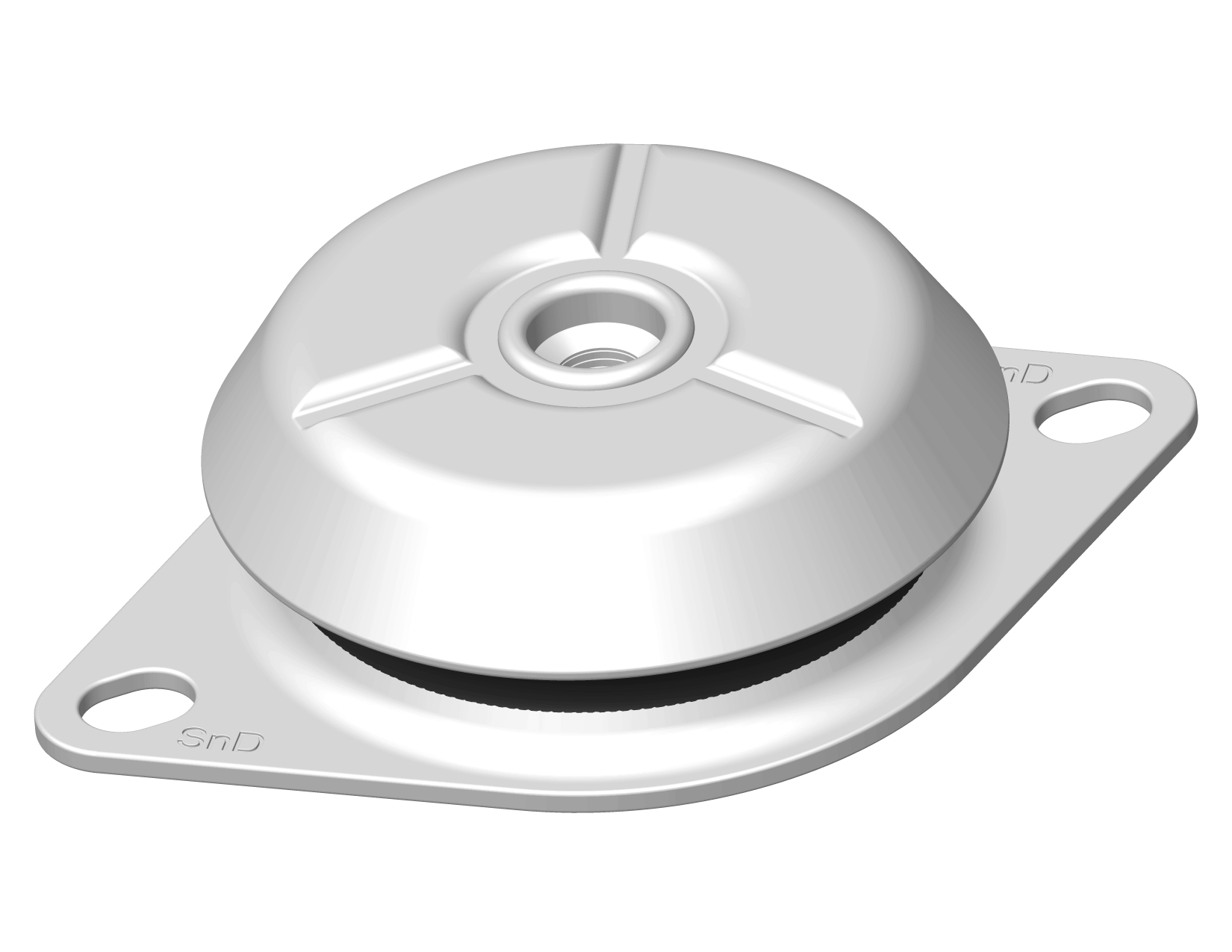

The FRS Range offers higher deflection than the standard FS Range. This results in a lower natural frequency providing higher level of insulation while maintaining stability. Like the FS Range, they are a designed with a failsafe function and a top cap which helps protect against UV, oils and diesel.

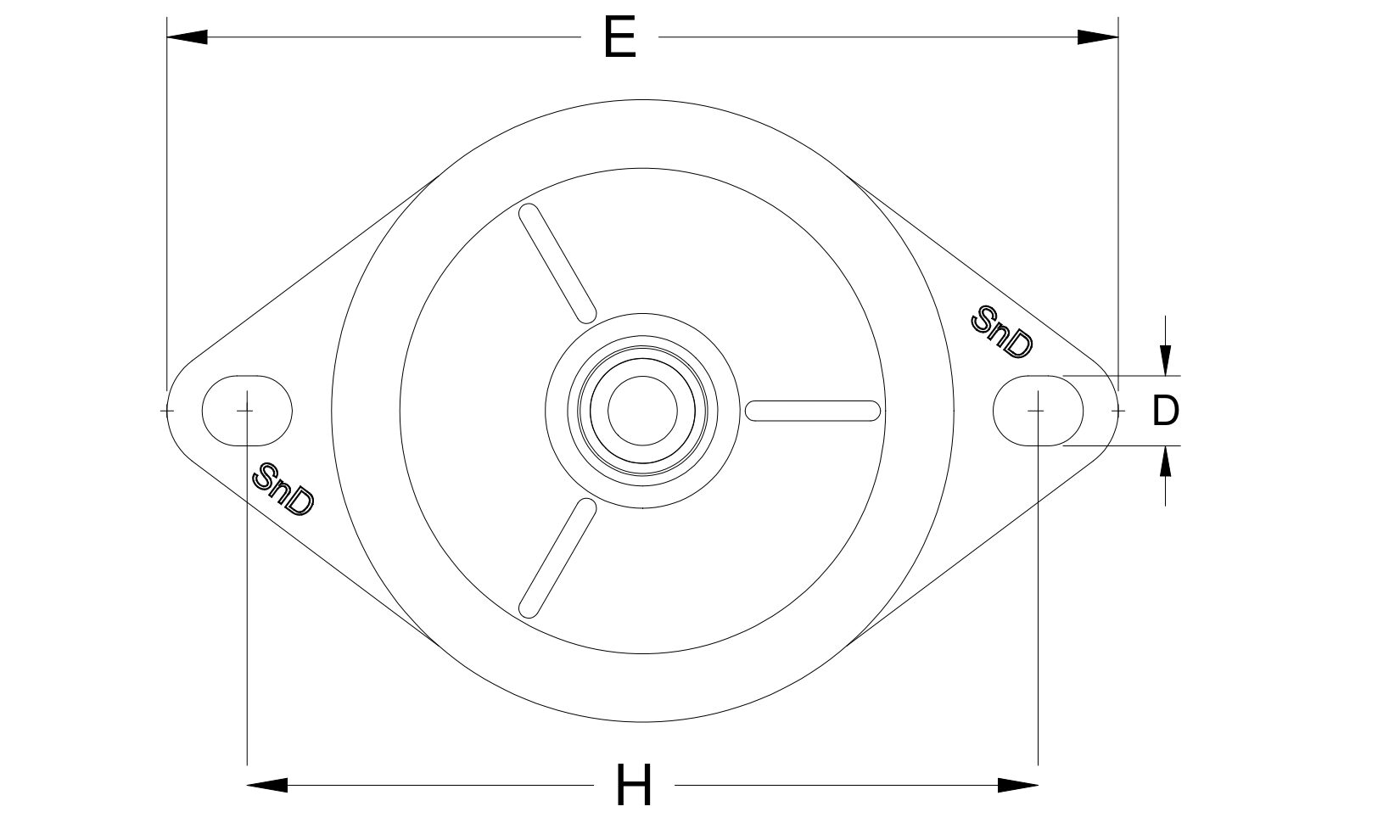

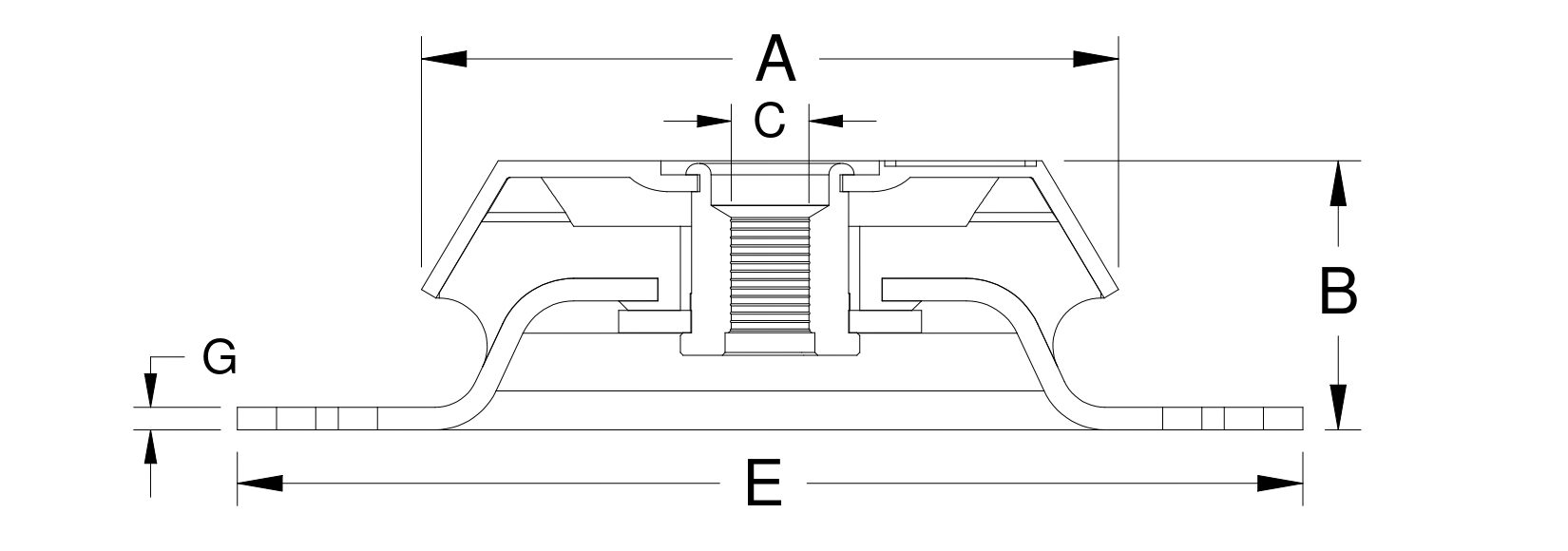

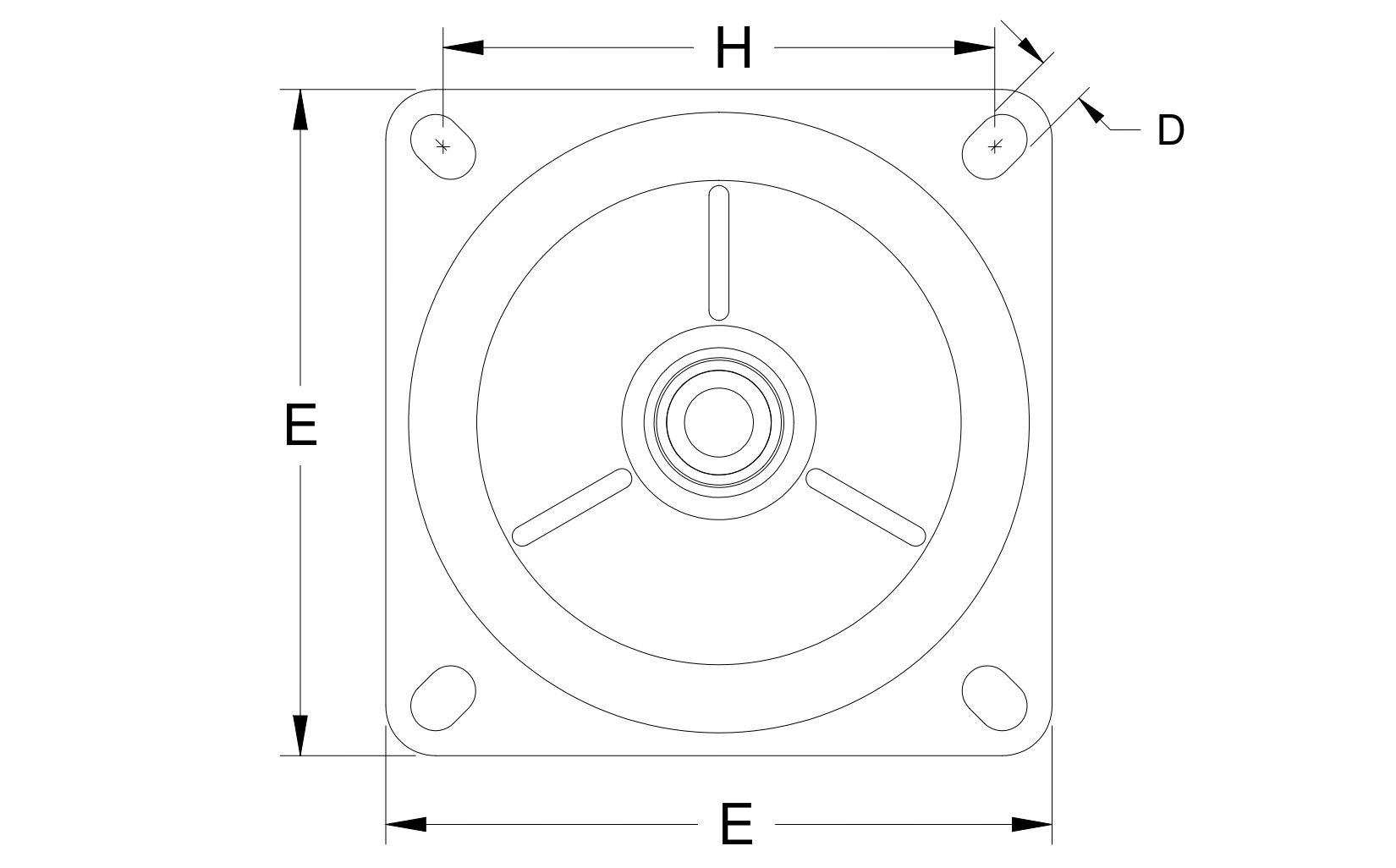

| Item | Shape | A | B | C | H | D | E | G | Load Ratings | |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 shore | 60 shore | |||||||||
| FRS 60 | Oval | 63 | 35 | M8-10 | 85 / 93 | 9x12 | 110 | 2.5 | 30 | 60 |
| FRS 100 | Oval | 78 | 35 | M10 | 107 / 113 | 9x12 | 135 | 2.5 | 70 | 140 |
| FRS 200 | Oval | 92 | 40 | M12 | 118 / 128 | 10x15 | 150 | 3 | 110 | 170 |
| FRS 350 | Oval | 106 | 42 | M12 | 138 / 150 | 13x18 | 175 | 4 | 170 | 330 |
| FRS 500 | Oval | 125 | 49 | M16 | 150 / 161 | 14x19 | 192 | 4 | 230 | 430 |
| FRS 800 | Oval | 150 | 49 | M16 | 178 / 185 | 14x17 | 216 | 4 | 340 | 700 |
| FRS 1800 | Square | 180 | 86 | M20 | 146 / 146 | 14.5 | 190 | 5 | 590 | 1300 |
| FRS 2200 | Square | 220 | 105 | M20-M24 | 180 / 180 | 17.5x20 | 220 | 5 | 1700 | 3400 |
