CAPTIVE SHOCK MOUNTS
CAPTIVE SHOCK MOUNT – Type CS
Captive Shock Mounts are low profile and relatively stiff failsafe mounting which makes them suitable for high frequency applications. They have a close ratio between compression and shear making them ideal for mobile applications. They are available in various compounds from Natural Rubber to Silicone (high temperature resistance).

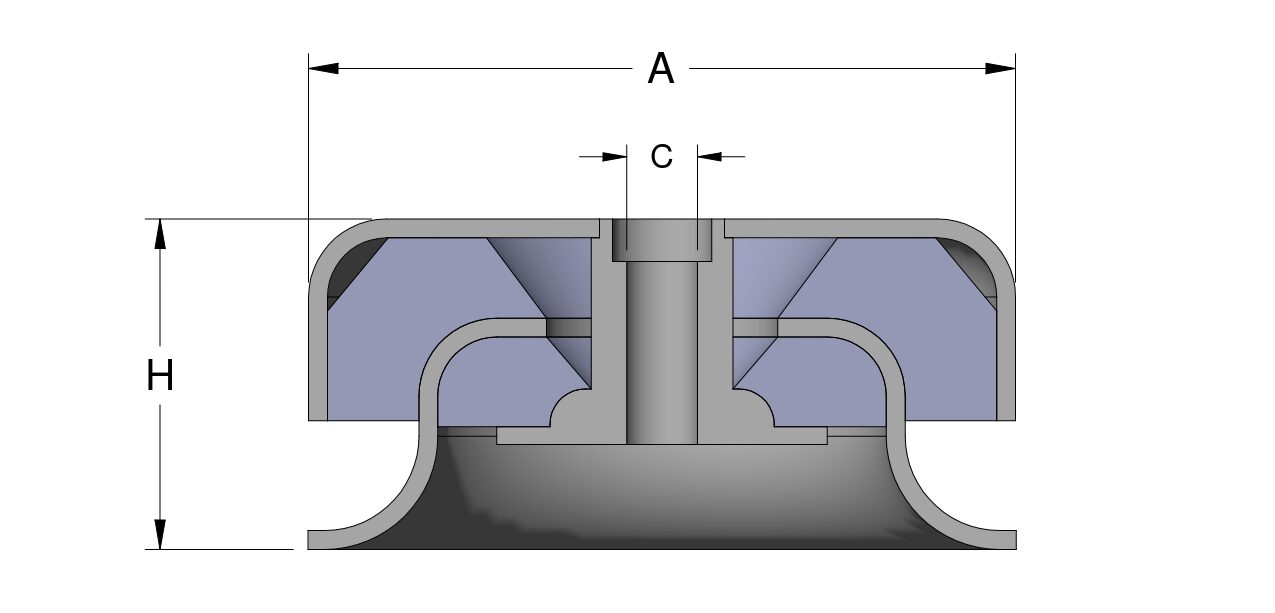

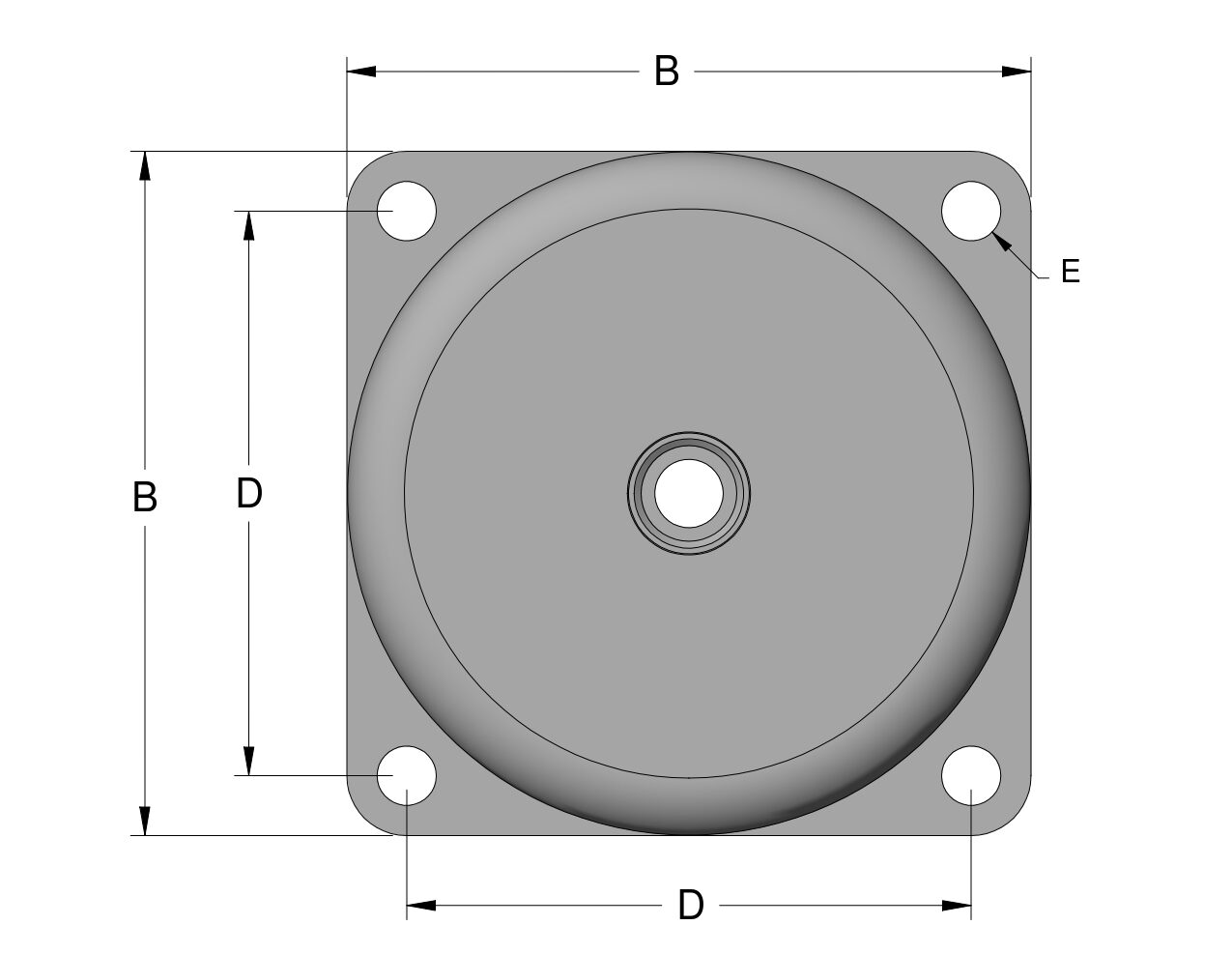

| Item | A | B | C | D | E | H |
|---|---|---|---|---|---|---|
| CS001 | 58 | 60 | M6 | 49.5 | 5.2 | 28 |
| CS002 | 76 | 75 | M10 | 63.5 | 6.4 | 38 |
| Item | Soft | Medium | Hard | X Hard |
|---|---|---|---|---|
| CS001 | 6.5 | 14 | 26 | 45 |
| CS002 | 68 | 120 | 144 | 184 |
